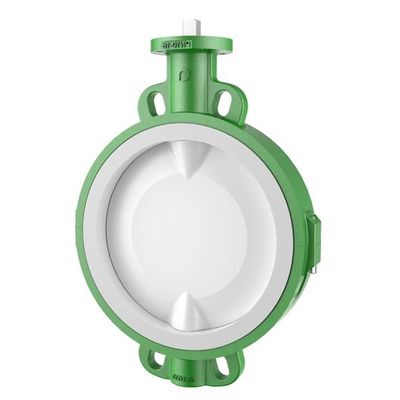

Affco - Model 586 -Concentric Wafer Type Butterfly Valve

Sizes:

• DN 40 – DN 300 (1½” ~ 12″)

Flange connection:

• EN1092 (PN 10-16)
• ASME B 16.5 (class 150)
• JIS B 2211 & 2212 (5K, 10K)
• Temperature range -40°C to +200°C
  Max working pressure: 10 bar (16 bar on request)

Face to face acc:

• EN 558 Series 20 (DIN 3202 T3 K1)
• ISO 5752 Series 20
• API 609 Table 1
• Top flange acc. EN ISO 5211
• Leakage Class: EN 12266 Rate A
