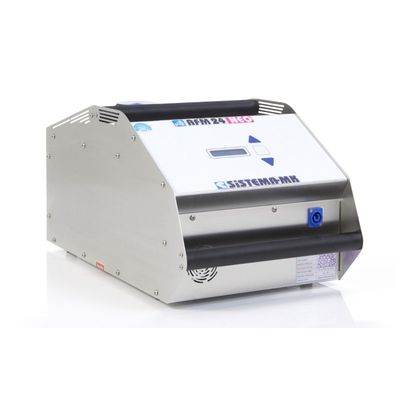

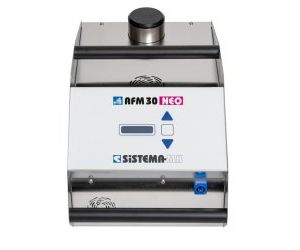

Concept - Model AFM-NEO Series -Pure Water Fogger
The AFM-NEO cleanroom foggers use high performance transonic piezoelectric ceramics to generate what is considered in its class an unmatched 1,25 m3 of pure fog per minute with 170ml of fog density per minute to provide 5-7m of visible air flows for smoke studies in cleanrooms, medical rooms. ISO suits, barrier isolators, fume hoods and similar applications in cleanrooms. The AFM-NEO series is the only range of ultrasonic based airflow mapper / clean-room fogger that competes in fog volume and fog density (pure white) with any available LN2 based fog system (with the exception of the AP0LL0.35). The AFM-NEO series has the advantage over LN2 foggers as it only require Dl Water / WFI water to create fog.
Cleanrooms are dynamic systems. People and goods are constantly in motion. Installations, production lines and machines do require periodical adjustment to the production of different products. According to the relevant standard ISO 14644-3 the operators of cleanrooms are obliged to periodically give evidence of the institute airflow situation by an airflow mapping supported by high purity airflow mappers.
- Dense white pure fog
- Cycle time of up to 80 minutes of which 50 minutes pure white fog
- Sufficient volume of fog to split output with Y-Splitter, providing two hoses of pure white fog simultaneously
- Atomizing up to 170ml of Dl Water per minute into 1,25m3 of pure white fog
- 5-7mtr of visible airflows
- Highest fog output in comparison to all ultrasonic piezoelectric based foggers
- Airflow recovery tested (ISO 14644-3 Annex B12)
- Airflow visualisation tests (ISO 14644-3 Annex B7)
- USP 797 in-situ airflow analysis
- USP 800 compound pharmacy airflow tests
- Airflow tests for NSF 49 and bio-safety cabinets
- Airflow requirements using semiconductor clean-room guidelines, FS 209E
- Containment transport studies on process tools
- Optimisation of equipment locations
- Trakcing routes of air infiltration in cleanrooms
- Pressure balancing
- Operator training
- Power Supply: 115vAC,: 230vAC: or 90: -264vAC
- Construction Material: Casing £ tank in electro-polished stainless steel: : :
- Dimensions (mm): L574: xH293xW325:
- Net Weight (kg): 20
- Tank Capacity (Itr): 10
- Maximum Cycle Time: 45-90
- Ultrasonic Piezos: 24-35
- Fog Adjustment: 0-100%
- Micro Fan: 24v, IP68
- Fog Outlet Dia: 80mm
Dot-matrix display, electronic water fill indication, elapsed timer meter, soft electronic start, self monitoring, buffer functionality (in case of unstable power supply).
- 650mm straight patter transparent fog rake 80mm dia
- Y-Splitter 2 sets of flexible tube with fittings 3mtr x 80mm dia
- Tube to tube connector
- Power cable
- 24 months warranty User Manual t CE compliance certificate
