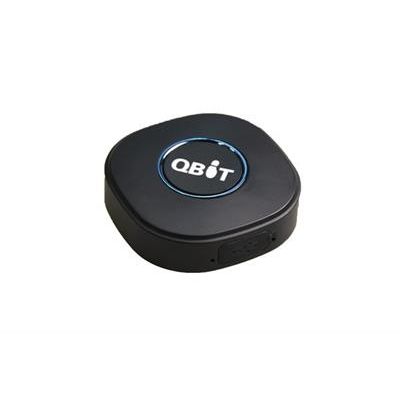

Concox - Model Qbit Mini -Personal GPS Tracker
FromConcox
The newly-launched Qbit Personal GPS Tracker will give you a completely new level of awareness and convenience. It stands out by compact, lightweight design for both excellent mobility and reliability. Loaded with GPS, Qbit enables you to view real-time location from the computer, tablet or smart phone. It is capable of withstanding extreme environment. Being stylish, tough and accurate, Qbit is ideal for kids, the elder and people with special needs.
Most popular related searches
- GPS+WIFI positioning Allow the location to be pinpointed in real time or periodically
- IPX5 waterproof Water-resistant case to ensure stable operation in tough environment
- Geo-fence alarm Create geofences in circle or rectangle for key locations
- Voice monitoring It enables you to listen to the surroundings
- SOS call Thumb sized button allowing urgent call during an emergency case
- Low battery alarm A warning will sent by Email or SMS when low battery occurs
- Two-way communication With MIC and speaker, it realizes two-way communication
- Compact size Easy to carry and able to place it in various locations
Hardware Specification
- Memory : 64 Mb
- GSM frequency : GSM 800/1900MHz
- GPRS : Class 12, TCP/IP
- Max output : GSM 850/1900MHz (33dBm ±3dBm)
- GSM 900/1800MHz (30dBm ±3dBm)
- Max frequency error : ±0.1ppm
- Receive sensitivity : Class II RBER2%(-102dBm)
GPS Specification
- GPS chipset : High sensitivity GPS chips
- Frequency : GPS L1, 1575.42MHz
- Channels : 66
- Location Accuracy : <10 meters
- Tracking Sensitivity : - 165dBm
- Acquisition Sensitivity : - 148dBm
- TTFF (open sky) : Avg. hot start ≤1sec
- Avg. cold start ≤32sec
Function & Package
- Voice monitor range : ≤ 3M
- Button : 1xSOS
- GSM/GPS antenna : Built-in quad band GSM antenna/18.0 x 18.0 x 2.0mm GPS ceramic antenna
- Standby time : 3-4 days
- Working time : 3 days (positioning every 10 minutes)
- Device weight : 33g
- Device dimension : 45.0 x 45.0x 16.0mm
- LED indicator : Green/Blue/Green
- Operating temperature : -20℃ ~+60 ℃
- Standby current : ≤5mA
- Charger : 5VDC/1A
- Calling time : 2 hours
