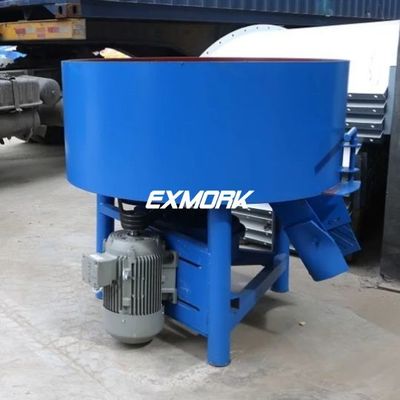

Exmork - Model JQ500 -Concrete Mixer

JQ500 concrete mixer is one of advanced machine at present in our country, do well in mixing concrete,  production is efficient, shorter time for mixing, low energy, noise is low. It can mix all kinds of concrete,  meeting many requirements. Alternative parts has long life, easily to repair and operate and so on,  feeding height can be designed according to customers needed. It can be applied with concrete mixer  transport machine and dumping car, working with concrete dosing machine. It is a very good option for  all kinds concrete mixing projects.

• Feeding capacity: 750L
• Output capacity: 500L(36 kgs cement)
• Theoretical productivity: 10 m³/h
• Scrapers(agitating vane quantity): 3
• Rollers: 235steel
• Motor(HP): 11KW
• Voltage(V): 220/380(V)adjustable
• Output RPM: 36 r/m
• Discharge system: Manual
• Door opening and closing system: Manual
• Motor Brand: BOSHAN
• Cycle time: 50S
• Weight: 560kgs
• Overall size: 1270*1250*1250mm
