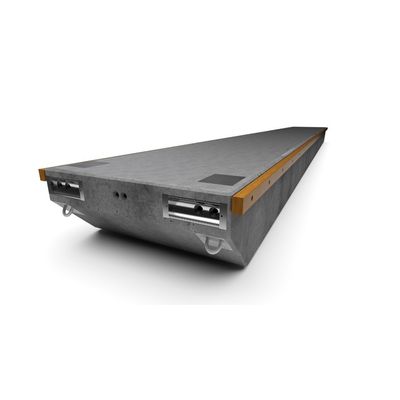

SF MarinaModel SF 1230 -Concrete Pontoon

SHARE

SF1200 series is a product primarily developed for commercial ports where tough wear all year long is to be expected. It has very strong armour and thick cover layer in its original version. SF1200 series is available in widths from 3 meters to 8 meters.

In recent years, we have noticed an increased interest in SF1200 Series features, primarily the 60-cm high freeboard and the higher weight, even within the recreation area where both marinas and individuals expressed their wish for a slightly higher freeboard than the usual 50 cm we have on SF1000 series.

Due to the expanded interest in SF1200 series, we have developed the SF1200 Light, where we removed the double reinforcement in the walls for slightly less vulnerable applications. Thus, we have arrived at a very cost-effective pontoon with a freeboard of 60 cm.

Length: 9.95, 11.96, 14.96, 20.00 m
Width: Incl. fender 3.25 m
Width: Excl. fender 3.0 m
Height: 1.2 m
Weight: 18.0, 22.0, 26.0, 34.0 tons
Freeboard: Approx. 0.6 m
Buoyancy: Approx. 550kg/m²
Connectors: 2 units type W 300 per joint
Breaking load: W 300: 2 x 66 tons per joint
