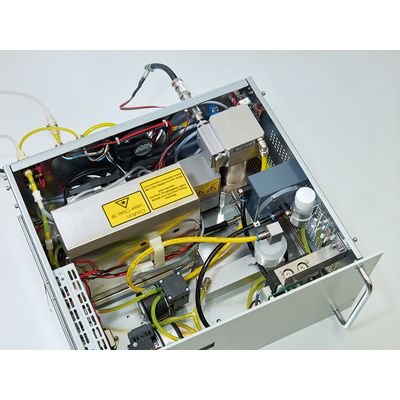

GRIMM - Model 5410 SKY-CPC -Condensation Particle Counter and Research Troposhperic Aerosols
The GRIMM 5410 SKY-CPC is the result of GRIMMs long-lasting experience with aerospace applications with custom-made CPC-cores optimized for counting nanoparticles at low pressure. The skyCPC line features a weight-optimized design, pressure-independent flow control and a specially adapted management of working fluids to comply with aviation safety regulations. The GRIMM 5410 SKY-CPC has an improved detection efficiency (D50 = 4nm) and response time (t10-t90 < 3 s) with an aerosol flow rate of 0.6 L/min.
The new detection head enables single particle counting up to 100 000 particles /cm³. The photometric mode allows for the detection of high concentrations up to 107 particles/cm³. As all GRIMM CPC models, the 5410 SKY-CPC features the well-established condensate removal and anti-spill saturator design with an integrated saturator shutter, enabling the transport of the CPC without removing or drying the saturator. GRIMM SKY-CPCs were already adapted for operation in pilotless aircrafts, light planes, and regular passenger planes.
- compact and rugged
- leak tight
- optimized for low pressure conditions
- custom-made for individual applications
- aerosol flow rate = 0.6 L/min ( with external pump)
- improved detection limit with D50 = 4.0 nm for tungsten oxide particles
- single particle counting up to 100 000 /cm³
- improved response time with t10-t90 < 3 seconds
- anti-spill saturator design
- continuous removal of condensate
- powered by 28 VDC
- airborne aerosol measurements
- fundamental aerosol research
- environmental & climate studies
- studies on atmospheric nucleation
- studies on nanoparticle growth, coagulation & transport
- mobile aerosol studies
- detector type : condensation particle counter (CPC)
- working fluid : n-butanol (n-butyl alcohol)
- max. concentration single count mode : 100 000 p/cm3
- max. concentration photometric mode : 107 p/cm3
- concentration accuracy :
- > 95% for single count mode
- > 90% for photometric mode
- rise time t10 - t90 : < 3 s
- internal pump : no
- flow rate sample air : 0.6 L/min
- ambient temperature : 10 to 40°C (50 to 104°F)
- ambient humidity : 0 to 95% RH, non-condensing
- absolute pressure range : 125 - 1100 mbar
- power supply : 85 - 264 VAC, 47 - 440 Hz
- power consumption : 80 - 130 W
- interfaces : USB or RS-232
- dimensions DMA (h x w x d) : 21.5 x 25 x 15.5 cm (8.5 x 9.8 x 6.1 inch)
- weight DMA : 3.9 kg (8.6 lbs)
