GRIMM - Model 5412 -Condensation Particle Counter (CPC)

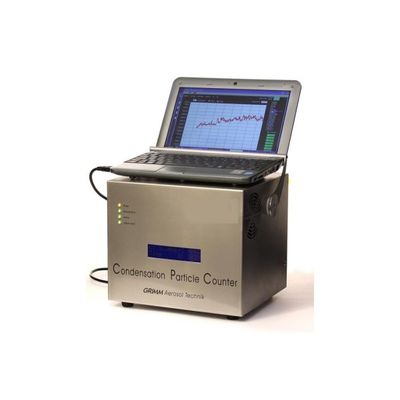

The GRIMM 5412 is the advanced compact and rugged instrument of the Grimm CPC line with integrated sample pump and an aerosol sample flow rate of 0.6 L/min. The new detection head enables single particle counting up to 100 000 particles /cm³ with improved detection efficiency (D50 = 4nm) and response time (t10-t90 < 3 s). The photometric mode allows for the detection of high concentrations up to 107 particles/cm³. As all GRIMM CPC models, the 5412 features the well-established condensate removal and anti-spill saturator design with an integrated saturator shutter, enabling the transport of the CPC without removing or drying the saturator.
Most popular related searches
nanotechnology process monitoring
fundamental aerosol research
aerosol research filter
condensation particle counter
aerosol flow
atmospheric aerosol
particle sizing
aerosol research
nanoparticle monitoring
particle counter
- advanced compact and rugged counter
- aerosol flow rate = 0.6 L/min
- improved detection limit with D50 = 4.0 nm for tungsten oxide particles
- single particle counting up to 100 000 /cm³
- improved response time with t10-t90 < 3 seconds
- tolerant to high ambient temperatures (40°C)
- operates with preconfigured software on a notebook
- comprehensive self-test for highest reliability
- anti-spill saturator design
- continuous removal of condensate
- operates with air and inert gases
- fundamental aerosol research
- filter testing
- environmental & climate studies
- nanotechnology process monitoring
- printer emission studies
- inhalation & exposure studies
- studies on atmospheric nucleation
- studies on nanoparticle growth, coagulation & transport
- engine exhaust studies
- mobile aerosol studies
- workplace monitoring
- max. concentration single count mode : 100 000 p/cm3
- max. concentration photometric mode : 107 p/cm3
- particle size range : 4.0 nm (D50 measured with tungsten oxide particles) to greater than 3 μm; adjustable to 7.0 nm for compliance with the standard CEN 16967 for determination of the particle number concentration of atmospheric aerosols
- concentration accuracy : >95% for single particle counting (up to 100 000 p/cm3 at 0.6 L/min, up to 150 000 p/cm3 at 0.3 L/min)
- 10% for optional photometric mode (up to 107 p/cm3 at specified conditions)
- rise time t10 - t90 : < 3 s
- internal pump yes : flow rate sample air
- 0.6 L/min : flow rate sheath air
- 3.0 L/min : flow control
- critical orifice with stabilized temperature; constant volume flow independent from ambient conditions
- aerosol carrier gas : air and inert gases
- working fluid : n-butanol (n-butyl alcohol)
- condensate removal : continuous drain with micropump
- interfacesUSB or RS-232
- data recording:directly on PC (GRlMM universal software 5477), optionally on USB stick
- status indication: display and 4 LEDs with 3 colors
- ambient temperature : 10 to 40°C (50 to 104°F)
- ambient humidity : 0 to 95% RH, non-condensing
- absolute pressure range : 500 - 1100 mbar
- power supply : 85 - 264 VAC, 47 - 440 Hz
- power consumption : 80 - 130 W
- size (h x w x d) : 23 x 25 x 29 cm (9 x 9.8 x 11.4 in)
- weight : 8.9 kg (19.6 lbs)
