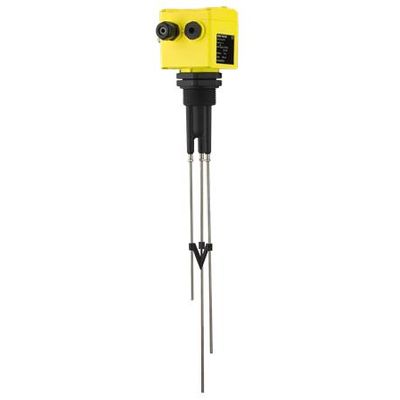

VEGAKON - Model 66 -Conductive Multiple Rod Limit Switch for Liquids
Multiple rod level switch with PP insulation. Application area: With 2 to 3 rods, a corresponding number of switching points between 12 cm and 4 m can be realized. The VEGAKON 66 is a conductive limit switch for conductive liquids. The instrument is suitable as full or empty detector in pipelines.
Most popular related searches
level switch
plastic coating
pump controller
conductivity level
pipeline monitoring
protective coating
conductivity instrument
pipeline locating
- Reliable pump control through multiple rod probe
- Reduced stock-keeping through exchangeable rod probes
- High flexibility through shortenable probe
Measuring range - Distance
- - [Meter - Foot]
Process temperature
- -40 ... 100 °C [°C - °F]
Process pressure
- -1 ... 6 bar [Bar - kPa - psi]
Version
- with 2 rod electrodes
- with 3 rod electrodes
Materials, wetted parts
- Alloy C22 (2.4602)
- PP
- 316Ti (1.4571)
Threaded connection
- G1½
Seal material
- no media contact
Housing material
- Plastic
- Aluminium, plastic-coated
Protection rating
- IP66/IP67
- IP66
Output
- Relay (DPDT)
- Transistor (NPN/PNP)
Ambient temperature
- -40 ... 70 °C
