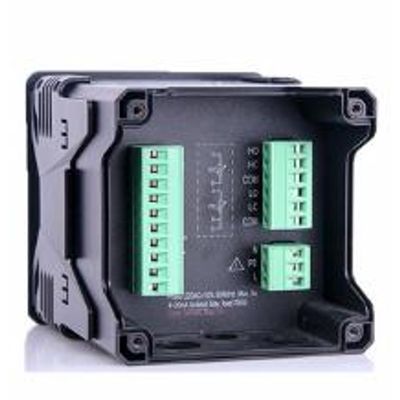

SinomeasureModel SIN-TDS210-B -Conductivity Meter

SHARE

The SIN-TDS210-B digital conductivity meter is an electrical device used to measure the electrical conductivity or resistance of a liquid. It works by applying a voltage between two electrodes in the liquid and measuring the flow of current between them. The results of the measurement are displayed in digital form on a readout. Digital conductivity meters are used in a variety of industries, including water treatment, agriculture, and chemical research. They can be used to measure the concentration of minerals in water, the purity of a liquid, and the level of contamination.

Most popular related searches

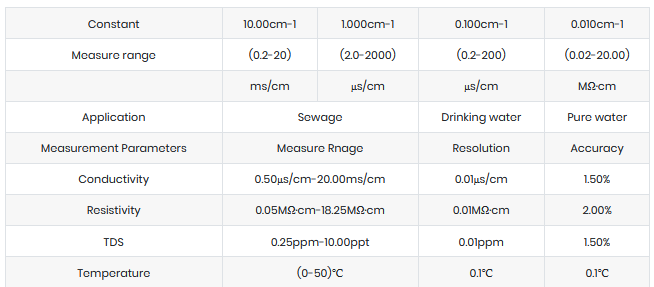

  • Range: 0.01 electrode: 0.02~20.00us/cm
  • 0.1 electrode: 0.2~200.0us/cm
  • 1.0 electrode: 2~2000us/cm
  • 10.0 electrode: 0.02~20ms/cm
  • Output signal: 4~20mA; Relay; RS485
  • Power supply: AC220V±10%, 50Hz/60Hz
  • Measuring Range:
    • 0.01 electrodes: 0.02 to 20.00 us/cm
    • 0.1 electrodes: 0.2 to 200.0 us/cm
    • 1.0 electrodes: 2-2000 us/cm
    • 10.0 electrodes: 20 to 20000 us/cm
  • Accuracy: ±2%FS
  • Stability: ±1%FS/24H
  • Temperature: Compensation range: -10~130?. NTC10K
  • Compensation: PT1000, accuracy: ±0.5?
  • display: 2.8 inch LCD display
  • Relay out: 2 relays out, capacity: 250VAC,3A
  • Signal output: 4-20mA output, RS485 communication, compatible with standard MODBUS-RTU
  • Power supply: AC220±10%, 50Hz/60Hz
  • Dimensions: 100*100*150mm(H*W*D)
  • Hole Size: 92.5*92.5mm
