Tethys Instruments - Conductivity Probe

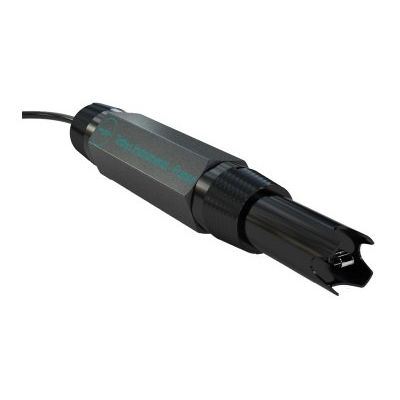

Tethys Conductivity Sensor with ¾”NPT thread is a heavy-duty probe with Polypropylene body suitable for many industrial water application. Mounting thread allow for in-pipe (flow through) installations of conductivity sensor. These conductivity sensor offers excellent chemical and impact resistance.
Most popular related searches
wastewater treatment plant
municipal wastewater treatment plant
industrial wastewater treatment plant
water treatment plant
wastewater treatment
drinking water treatment plant
industrial wastewater treatment
municipal wastewater treatment
conductivity probe
conductivity sensor
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
- Body Material: Polypropylene
- Mounting: In-Line (Flow-through):
- Temperature Range: 0-80 °C
- Maximum operating pressure: 100 psi
- Temperature Element: Pt-100 Ohm RTD
- Temperature Compensation: Automatic
- Integral Sensor Cable Length: 6 meter
- Mounting Thread on Sensor Body: ¾” NPT threads
Conductivity online electrode - 6 meters cable
- ELCOND-1:
- Range: 0 – 20 mS
- Cell constant k=1.0 cm-1 (medium range)
- Built-in ATC RTD 100 Ohm
- ELCOND-0.01:
- Range: 0 – 200 µS
- Cell constant k=0.01 cm-1 (very low range)
- Built-in ATC RTD 100 Ohm
- ELCOND-0.1:
- Range: 0 – 2000 µS
- Cell constant k=0.1 cm-1 (low range)
- Built-in ATC RTD 100 Ohm
- ELCOND-10:
- Range: 0 – 200 mS
- Cell constant k=10.0 cm-1 (high range)
- Built-in ATC RTD 100 Ohm
- ICOND:
- Inductive conductivity online probe
- Range: 0 – 100 mS
- 3 meters cable
- Built-in temperature compensation at 2.2%/°C
