Zetian - Model ZCS-02 -Conductivity Sensor

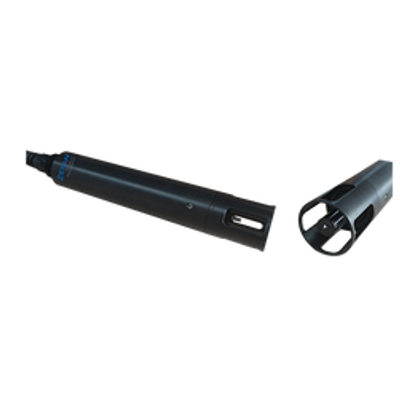

The ZCS-02 Conductivity Sensor is a kind of intelligent conductivity electrode adopting RS485 communication interface and standard Modbus protocol. It can be widely applied to conductivity monitoring in sewage plants, waterworks, surface water, aquaculture and industries, etc.
Most popular related searches
conductivity sensor
water monitoring sensor
water quality sensor
water quality
water quality monitoring
sewage plant
surface water
conductivity electrode
conductivity monitoring
temperature sensor
- With corrosion resistant shell and IP68, applicable to all kinds of poor working conditions
- Adopt industrial-grade graphite quadrupole electrode, suitable for conductivity measurement of full range
- Stable electrode constant, not affected by polarization
- Automatically compensate surface contact resistance, not affected by pollution
- With built-in PT1000 temperature sensor and compensation algorithm, the accuracy can reach ±0.1?.
- Use RS485 communication interface and standard Modbus protocol, convenient for integration
Title: Val
- Principle: Quadrupole Graphite Electrode Method
- Range: 0~200,000 μS/cm
- Resolution: 0.01μS/cm (depend on range)
- Repeatability: ±1%
- Zero drift: ±1%F.S.
- Span drift: ±1%F.S.
- Measurement accuracy: ±1%
- Response time: <15s
- Response time: ±1%
- Temp compensation accuracy: ±1%
- Actual sample comparison: RS485: standard Modbus protocol
- Communication Interface: D34mm: L205mm: cable of 3m (customizable)
- Dimension: -5℃~80℃: 0~6bar
- Working condition: 12V/24V DC
- Working voltage: ±1%
- Insulation resistance: ≥5MΩ
