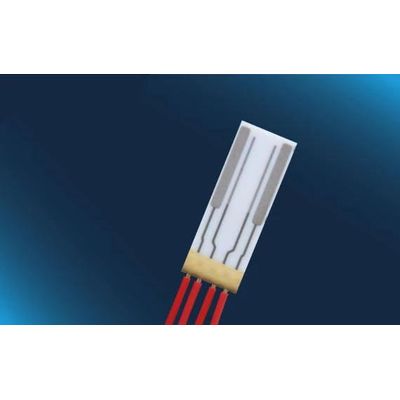

IST AG - Model LFS1505 - Conductivity Sensor
From Conductivity Sensors
Optimal for applications with a conductivity measuring range from 100 μS/cm to 200 mS/cm (typical cell constant of 0.68 cm -1). The IST AG LFS1505 conductivity sensor offers a typical cell constant of 0.68 cm-1 and a conductivity measuring range from 100 μS/cm to 200 mS/cm (extended range from 10 μS/cm to 200 mS/cm possible with cell-constant correction) within an operating temperature range of -30 °C to +100 °C. However, it easily withstands temperatures over 130 °C enabling processes like sterilization by autoclaving.
Product Details
Further advantages of the LFS1505 thin-film conductivity sensor include:
- Wide conductivity and temperature range
- Fast response time
- Optimal accuracy
- Resistance to various chemicals1)
- Excellent long-term stability
- Integrated RTD for temperature compensation
- Four electrode measurement2)
- Customer-specific sensor available upon request
The IST AG LFS1505 conductivity sensor is available with either Pt/Ni-wires, Cu/Ag-wires or PTFE-insulated AWG 30 as standard wires.
Conductivity sensors play an important role in determining water quality, and are able to measure the conductivity of most electrolyte solutions. The IST AG conductivity sensor is an ideal choice for water quality and waste water treatment applications, amongst others.
Downloads related to this product
IST AG - Model LFS1505 - Conductivity Sensor - Datasheet
Videos related to this product
-
IST Corporate Video
-
IST AG General Information - Video
Founded in 1991, Innovative Sensor Technology IST AG is headquartered in Ebnat-Kappel, Switzerland (canton St. Gallen), in the mountainous region of Toggenburg. With around 250 employees we are a leading sensor specialist that focuses on the individual needs of our customers.
IST AG is a company of the Endress+Hauser Group, headquartered in Reinach in north-western Switzerland. The Endress+Hauser Group is among the global leaders in measuring -
Conductivity Sensors - Innovative Sensor Technology IST AG Video
Introduction to Innovative Sensor Technology IST AG Conductivity Sensors.
