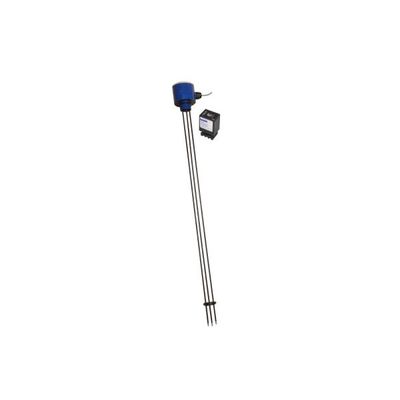

Madison - Model M3784-110 -Conductivity Sensor Kit, Stainless Steel, 1` NPT, 24` Probes, 110 VAC Level Controller
Conductivity sensor kit, stainless steel, 1" NPT, 24" probes, 110 VAC level controller; Environments such as semi-solid liquids, industrial slurries and wastewater, Water-based liquids.
Most popular related searches
level controller
conductivity sensor
controlled environment
level sensor
industrial wastewater
conductivity level
industrial water
- Input Voltage : 110 VAC
- Length Total : 24" length (Standard); 72" length (Maximum, with two extensions). May be cut to custom length
- Max Pressure : 30 PSI
- Max Temperature : 212°F (100°C)
- Mounting : 1" NPT
- Note : Integral junction box with IP68 (NEMA 6) protection 10` cable for attaching sensing head to controller.
- Optional extension kit available, includes 3-25” probe extensions, p/n 005-M03797-EXT
- Other Wetted Materials : 316 Stainless Steel electrodes; Polypropylene housing. All food-grade materials
