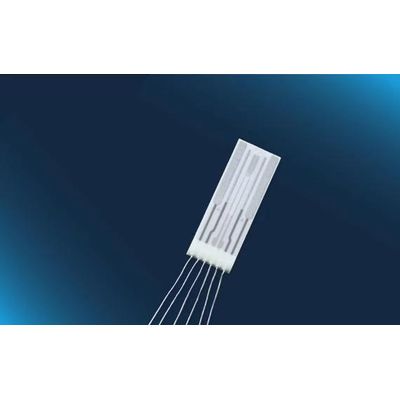

IST AG - Model LFS1505 -Conductivity Sensor with Integrated Temperature Sensor
Optimal for applications with a conductivity measuring range from 100 μS/cm to 200 mS/cm (typical cell constant of 0.68 cm -1) with integrated Pt1000 temperature sensor. Conductivity sensors for water quality and waste water treatment applications.
- Product Name: LFS1K0.1505.6W.B.010-6
- Conductivity range: 100 uS/cmto200 mS/cm
- Cell constant: typical 0.68 cm-1
- Layout: 4 electrodes and integrated temperature sensor (Pt1000, class F0.3)
- TCR temperature sensor: Platinum 3850 ppm/K
- Nominal resistance: 1000Oat0°C
- Tolerance/class: IEC 60751 F0.3 (Class B)
- Chip size/dimensions: 14.9x5.5x0.65 mm
- Connection type: 6 wires
- Wires: Pt/Ni-wire
- Wire dimensions: 0 0.2 mm, 10 mm long
- Product Old code: 090.00078
- Product code: 103856
- Wide conductivity and temperature range
- Fast response time
- Optimal accuracy
- Resistance to various chemicals1)
- Excellent long-term stability
- Four-electrode measurement2)
- Customer-specific sensor available upon request
Conductivity sensors play an important role in determining water quality and are able to measure the conductivity of most electrolyte solutions. IST AG conductivity sensors are an ideal choice for water quality and waste water treatment applications, amongst others.
Aggressive media can influence the long-term stability. Chemical resistance of the sensor in the end application must be tested by the customer.
