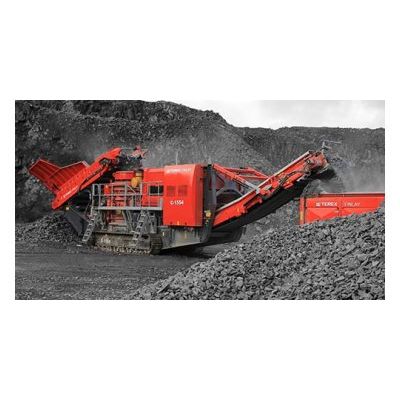

Terex Finlay - Model C-1554 -Cone Crusher
Net Engine Power: Tier 2 / Equivalent: CAT C18 Acert 571 kW (765 hp). Cone Head Diameter: 1380 mm (54"). Transport Weight: 61,000kg (134,614lbs).
The Terex® Finlay C-1554 is the ultimate mobile solution for any aggregates producer or contractor looking for a high output capacity machine that provides large reduction ratios and an excellent cubical shape.
This aggressive machine incorporates the proven Terex® MVP450x cone crusher that can accept an all in feed and features direct variable speed clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The large hopper/feeder on the plant has an automated metal detection and a purge system designed to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
- Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
- Fuel efficient direct drive transmission through wet clutch.
- Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime.
- Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.
