Keestrack - Model H7 -Cone Crusher
FromKeestrack N.V.

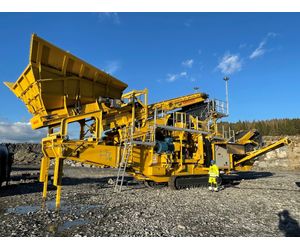

H7e cone crusher with optional 2-deck pre-screen
Most popular related searches
- Can be used in secondary crushing
- Designed to crush the toughest of rock and ore
- Feed size up to 250 mm (10")
- C.S.S. min. - max. 16 - 48 mm (1" -2") depending on crushing chamber configuration
- Capacity up to 415 tonnes / hour
- Hopper 8 m³ (10 yard³)
- Other configurations possible with different crushing chambers
- ZERO electric drive
- 2 speed track drive
- Optional 2-deck pre screen: Top: 3.000 mm x 1.500 mm, bottom 2.400 mm x 1.500 mm
- Optional 3-deck screen: Top: 4.640 mm x 1.800 mm, Middle and bottom 4.500 mm x 1.800 mm (14'9" x 5'10")
- Effective screen area 8,1 m² on each deck, with return conveyor
- Best product shape
- Extensive option list to configure to your application
- Can be powered by Diesel/Gen Set M7
- Weight
68 t - 22 t
92,1 t - Length
22.544 mm (74') - 14.563 mm (47'9")
24.693 mm (80'10'') - Height
3890 mm (13'1'') - 2782 mm (9'1")
7.229 mm (23'9'') - Width
3100 mm (10'2'') - 2600 mm (8'6")
10.521 mm (34'6'')
- Abrasive and hard stone
- Hard rock and ore
- Granite and basalt
- Primairy, secondary, tertiary or quaternary crushing
- River and sea gravel
- Quarrying and mining
- Production of aggregates for asphalt, concrete and others
