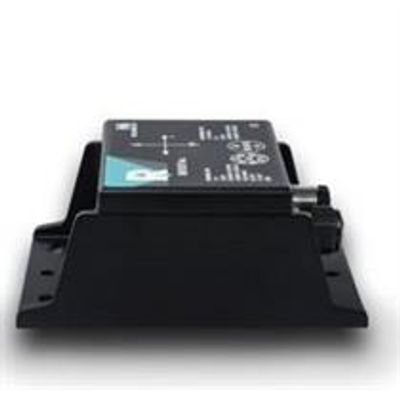

Rieker - Model H6 -Configurable Digital Inclinometer
The H6 inclinometer provides highly accurate tilt sensing in a rugged metal IP68 rated ALL-weather housing. Operating temperature from -40° C to 85° C and underwater operation tested up to 30 meters makes the H6 a perfect inclinometer for most environments. The output parameters can be modified at the factory to meet your specifications (i.e. range, polarity). We also offer the Flex Series Development Kit allowing the end user to modify the sensor as needed right from a PC – providing full flexibility for R&D and OEM production lines.
Input and Output cables are sold separately here.
Multiple H6 sensors can be daisy-chained together in a row for monitoring along bridge spans, solar field arrays, and other applications that would benefit from multiple sensors. Daisy-chain cables are sold separately here.
In stock
- Weight 20 oz
- Dimensions 4.34 × 3.26 × 1.8 in
- Application Antenna Positioning, Motor Grading, Pitch and Roll Monitoring, Platform Leveling, Remote Infrastructure Monitoring, Roll Angle, Roll Over Early Warning, Slope Warning System, Vehicle Tilt Monitoring
- Number of axes One, Two
- Backlit No
- Classification Electronic
- Customizable Yes
- Operating Temperature -40°C to 85°C
- Output Switch: Open Collector, Analog: Current, Analog: Voltage, Digital: RS485
- Accessories Yes
- Color Zones No
- IP Rating 68
- Resolution 0.01 Degrees
- Measuring Range ±6 Degrees, ±60 Degrees, -30 Degrees to +90 Degrees, ±5 Degrees, ±10 Degrees, ±20 Degrees, ±26 degrees, ±30 Degrees, ±45 Degrees, ±90 Degrees
- Input 11 to 36 VDC
- Connector M12 Connector
- Units of Measurement Degrees
