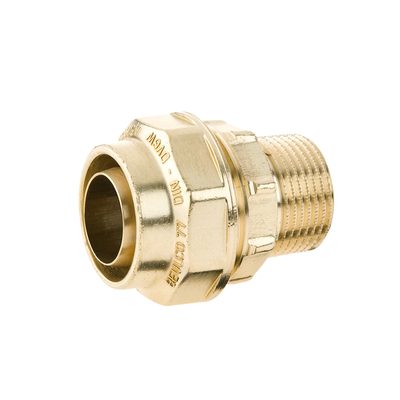

Beulco - Model A2 -Connector with Loose Insert Pipe
With our specialist in water-carrying connection technology, you are in the right place for water and drinking water applications. The A2 connector consists of few components but offers many possibilities for variations. This gives you the opportunity to customize the connection technology according to your specific needs and requirements.
Dimensions
- for plastic pipe dimensions 0 16 mm up to 0 75 mm
Range of application
- drinking water
- Cold and hot water up to 40°C
Suitable for pipe types
- PE80, PE100
- PVC (with clamping ring made of brass, without insert pipe)
The connector consists of only four components, thus our connector enables a quick and simple installation without any special tool. Only the insert pipe will be chosen according to the pipe dimension. With the suitable insert pipe, you can connect every dimension of plastic pipes.
Our connectors are made of thermally unstressed brass and Ecobrass. Ecobrass is a lead-free alloy, qualified for the use in drinking water installations according to the European Drinking Water Directive 98/83/EC. The reliable brass is characterized by dezincification resistance and high durability.
Sealing is provided by the clamping ring, which has a two-function. The clamping ring holds the pipe in the connector and at the same time ensures a secure seal, as the pressure nut presses the clamping ring against the base body when it is tightened. A deformation of the plastic pipe towards the inside is safely prevented through the support tube
