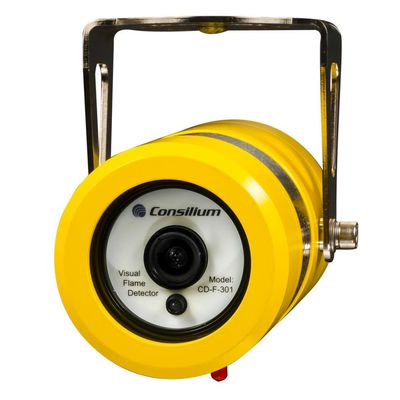

Consilium - Model CD-F-301 -Flame Detector
Visual flame detector developed for explosion hazardous areas. Live video image processing with monitoring and recording options. It uses FM and SIL2 certified flame detection algorithms. Maximum immunity to false alarms.
Most popular related searches
flame detection system
visual flame detector
hazardous area
flame detection
flame simulator
explosion hazard
process monitoring
- Visual flame detection principle which ensures maximum false alarm immunity.
- Live colour video output.
- Single sensitivity for ease of mapping and maximum coverage.
- On-board microSD card - pre/post alarm video recording.
- Separate function test device – Flame Simulator CD-FS-301.
- Advanced optical verification test.
- Multiple output options for maximum flexibility and compatibility.
- User programmable via HART or RS-485.
- Can operate stand-alone with or without video.
- Unrivalled MTBF – min 2,000,000 hours.
- Certified SIL 2 capable (Exida).
- Heated window for operation in harsh weather conditions (snow, ice, condensation).
- Hazardous area zonesZones 1 & 2 with IIC gas group vapors present.
- Ex approved to ATEX & IECEx and FM/FMC.
- 3rd party performance testedFM 3260 and EN54-10 Class 1 (VdS).
