EEE - Model CMS 600 -Constant Spill Monitoring System

The Fox CMS600 system is designed to allow site run-off to flow to the stormwater network while providing a constant monitor of the quality of the run-off. If a predetermined level of contaminants is detected in the run-off, the system will divert the flow to a contaminant tank or similar and notify that a significant event has occurred.

Following detection the system continues to monitor the run-off quality. When the pollutant has been diverted the run-off will again be allowed to go to the stormwater system.

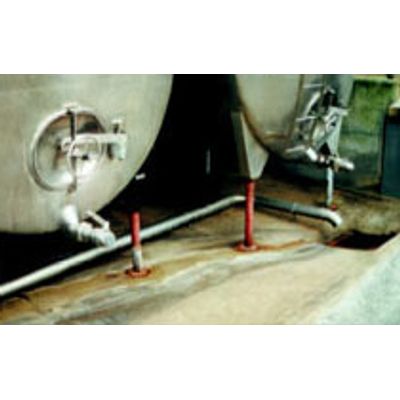

The Fox CMS600 system is especially suited for installation in wineries, milk depots and chemical plants. A Fox CMS600 system will monitor the runoff from a site and ensure that it is free from soluble pollutants. This system provides a means of detection, diversion and notification that a spill of soluble pollutant (milk, wine or other chemicals) has occurred.

• Transfer of wine
• Storing chemicals
• Detection of milk product spills
• Pollution control of open areas

Model : FOX CMS600

• Flow Rate : 250 l/min @ 0.5m Head
• Body : Gunmetal
• Shafts : Stainless steel
• Flange : Nylon
• Diaphragm : Mitrile rubber
• Gasket : Nitrile rubber
• Size : 150 mm
• CONTROL STATION : Fox programmable logic controller
• POWER SUPPLY : 240 v AC 10 amp (by others)
• DELAY JET : 1.5 brass cap jet
• SILT & SOLIDS CON : 600x600
• TROL GRATE : 600x600 galvanized medium or heavy
• STANDARD DIVERSION CHAMBER : 600x600 opening

Model : CMS600

• Body : Gunmetal
• Internals : Gunmetal
• Seals : Nitrile rubber / polyurethane
• Max. inlet pressure : 1400 kpa
• Size : Suits 25mm supply
• Solenoid : 12v dc. 12mm N.C.
• Proximity Switch : 12v dc Pepperl & Fuchs
• CONTROL STATION : Fox programmable logic controller
• SENSOR PROBE : 1 cm Dual Leg stainless steel
• Drive Line : 12mm copper ( not supplied)
• polyethylene silt basket : 9mm holes
• PANEL BOX : galvanized or stainless steel
• Opening : 740 waste invert, 280 storm invert
