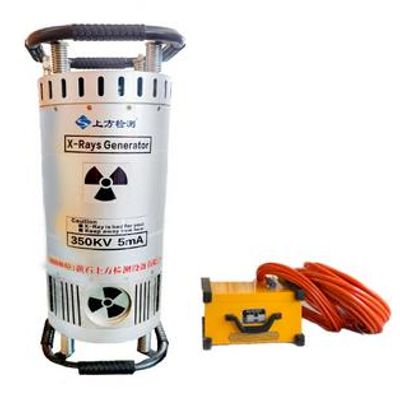

SFJCNDT - Model SF Series -Constant Working 99mins X-ray Flaw Detector

SF series Flaw Detector is a new product independently developed by our company, with reasonable structure, durable, constant working and other characteristics, this series of flaw detection machine is not currently in the market of other manufacturers.

• SF350 series of products includes the following models: SF350D, SF350Z
• Insulation: SF6 gas
• Focus Length: 700mm
• Constant Working time: 99min
• Penetration A3 Steel:  Not less than 62 mm
• Ambient temperature: -25°C~40°C
• Relative Humidity: Not more than 85
• darkroom processing: temperature 20 ± 2 °C; development 5min; blackness 2 2.0
• Anode material: tungsten target
• Cooling method: anode forced air-cooling
• Alarm device: sound and light alarm
