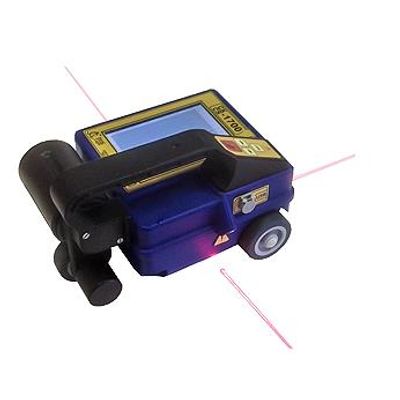

Shijay - Model 1700 3D -Construction Scan Radar

Construction Scan 1700 includes a control processing unit, LCD display, the antenna unit AB-1700 and a power supply unit in one enclosure. The control processing unit provides processing, displaying and saving of the scanning results. CS-1700 accumulates information in the internal 2 GB Flash memory card and transfers it to the PC via the USB interface. There is a special marking rug with a bar code for precision 3D scanning of objects.

• Detection and location of different defects in reinforced concrete
• Cells, cavities
• Foreign inclusions
• Cracks, layering
• Determination of reinforcement specifications
• Size
• Occurrence depth
• Degree of corrosion
• Detection of buried wiring, cables and communications lines
• Detection of plastic and metal pipelines
• Detection of heterogeneities, anomalies and other buried in solid environment (which wood, brick, reinforced concrete, building constructions, soil, etc)
• Discovering of ventilation and communication channels
• Detection of shelters and covered-up holes

• All-in-one GPR system
• 5" colour display
• 3D visualization
• Built-in USB interface
• Internal 2 GB Flash memory card
• Detachable SD-card
• Guiding laser
• Data collection grids (3D system)
• Built-in bar code reader
• Several languages option (Russian, English, Chinese)
• Quickly-detachable Li-io battery 15V
