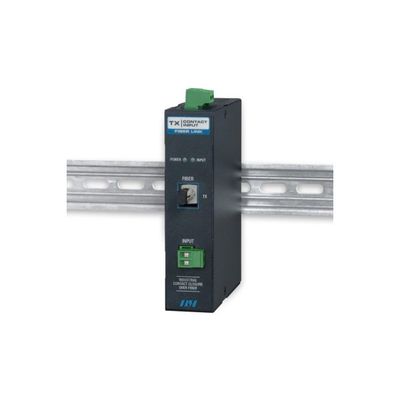

RLH - Contact Closure Fiber Link System
This Contact Closure Fiber Link system provides transmission of the contact closure signal over one optical fiber. Applications include alarm event triggering, building automation, environmental control systems, fire & alarm systems, gate control, traffic signal control equipment, and more. This contact closure system is designed to operate over an extreme temperature range, providing reliability in non-temperature controlled environments. Accepts a wide power input rage of 12 through 48 volts DC allowing for flexibility in installation.
- Convenient LED status indicators
- Available with ST connectors
- Singlemode and multimode options available
- Input will sense a dry contact closure
- Output relay is rated to support to 60 Watts
- Can be powered by 12-48VDC
- Pluggable terminal blocks
- Alarm contact for status monitoring
- Wide operating temp -40°F to +158°F (-40°C to +70°C)
- Standard T35 DIN rail or wall mountable
- Limited Lifetime Warranty
- Made in USA
Wavelength:
Multimode: 850nm
Singlemode: 1310nm
Fiber Type/Distance:
Multimode (62.5/125µm, 50/125µm): 1.2 miles (2km)
Singlemode (9/125µm): 9 miles (15km)
Singlemode Long Haul: 29 mi. (48 km), min. required loss *-8dB
*Note: Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range.
Fiber Connector Type:
ST
Construction:
Steel and Aluminum Alloy, Powder coated
Mounting Style:
Standard DIN rail (TS-35) or wall mount
Dimensions:
H4.93” x W1.2” x D3.5” (100mm x 31mm x 89mm)
Not including connectors, Din Clip, or Wall Mount Ears
Powering:
12~48VDC
Operating Temperature:
-40°F to +158°F (-40°C to +70°C)
