LennRO - Containerized Sea Water Desalinations Systems 100 m³/day, 300 m³/day, 500 m³/day

Prefiltration

• Chlorination / De-chlorination with automatic redox control;
• Multimedia filtration with pneumatic valve battery;

RO system

• 5 micron cartridge filtration
• High pressure pump;
• Energy recovery device (optional);
• High performance membranes;
• Fiberglass pressure vessels 1000 psi;
• Permeate conductivity in the front panel display;
• Permeate and concentrate flow meters;
• Pressure indicators / switches;
• Pressure relief (safety) valve before and after HPP;
• Automatic fresh water rinse at shutdown
• CIP unit
• Control cabinet fully automatic;

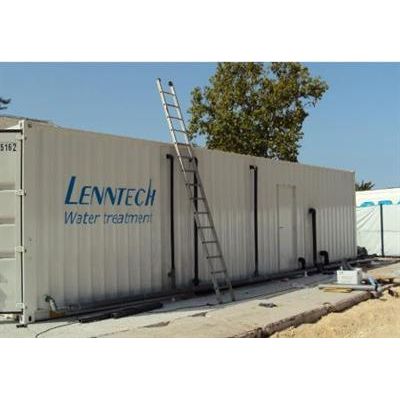

• Insulated container (incl. side door, roof hatch).

Lenntech can customize your desalination systems according to your water quality requirements and local conditions. Following some of many options we can provide to customize your system:

• Feed /Backwash pumps
• Container air-condition, additional walls/ doors
• pH adjustment;
• Re-mineralization
• Post-disinfection
• Data monitoring and control with advanced PLC

• Total dissolved solids: 35.000-38.000 ppm
• pH value: 8-8.5
• Total suspended solids: <5 ppm
• Silt Density Index SDI15: <5
• Turbidity: <2NTU
• Temperature: Min. 20°C - max. 30°C
• Feed water pressure: Min 3 bar, max 4 bar

• Total dissolved solids: 100-300 ppm
• pH value: 6-7
• Total hardness: 5-10 ppm CaC03

Backwash flow recommended 25-30m/h velocity. Backwash pump can be provided on request.
