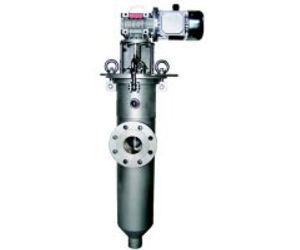

contec - Liquid Filtration Using Fully Automatic Wedge Wire Filters

Application: contec wedge wire filters for the filtration of complicated, viscous or gel-like media such as lacquer, emulsions, oil, polyurethane, chocolate, bitumen, etc.

Most popular related searches

self-cleaning filtration

solids discharging

wedge wire filtration

coupling sealing

solids flow

Study housing made of stainless steel 1.4301
Simple disassembly of the filtering element of stainless steel 1.4435
Minimum product loss during discharging of solid matter
Produced in accordance with Pressure Equipment Directive 97/23/EC Article 3, Para 3
Housing material 1.4571

Self-cleaning without interrupting filtration
No filtering element disposal
Minimum product discharge during cleaning
Manual or automatic discharging of solid matter possible

Flow rate:
Up to 35 m³/h

Filter ratings:
25 – 3000 µm

Medium:
For aqueous and highly viscous media such as bitumen, chocolate, lacquers, oil, etc.

Upwards facing flange cover for removal of the filter insert
Heating jacket
Magnetic coupling for hermetic sealing
Can be used to 16 bar
Can be used to 200°C

contec - Liquid Filtration Using Fully Automatic Wedge Wire Filters

Characteristics:

Advantages:

Flow rate:

Options:
