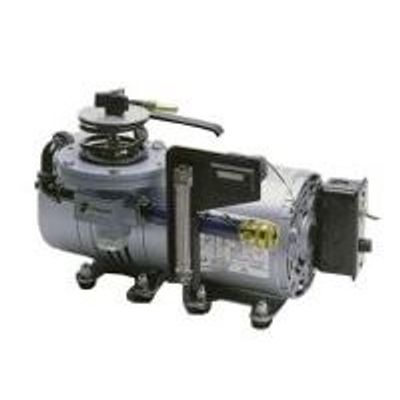

Radeco - Model AVS-28A -Continous Duty Samplers
The Model AVS-28A Portable Constant Flow Air Sampler is a continuous duty, constant flow device. It can be used with filters and cartridges in the collection of airborne contaminates, or as a regulated, positive displacement vacuum supply for continuous air monitors and stack sampling systems.
The ability of the AVS-28A to maintain a preset sample flow rate is controlled by the unique side-mounted regulator valve. The RADēCO regulator valve is not a bypass design, and therefore the exhaust contains only sampled air. The AVS-28A has the superior ability to compensate for added P across sampling media.
The sampling flow rate is read out on a side-mounted rotometer which measures the differential pressure across the in-line anodized aluminum venturi. All units are individuall y calibrated and traceable to NIST.
- Constant airflow maintained with ΔP across the filter up to 17″ Hg (Flow Rate Dependent)
- Balanced, Easy to carry system
- Flow rate indicated on rotometer, CFM or LPM
- Rated for continuous duty
- Low noise level
- Minimal maintenance
- Optional elapsed time indicator
- All units individually calibrated and traceable to NIST
