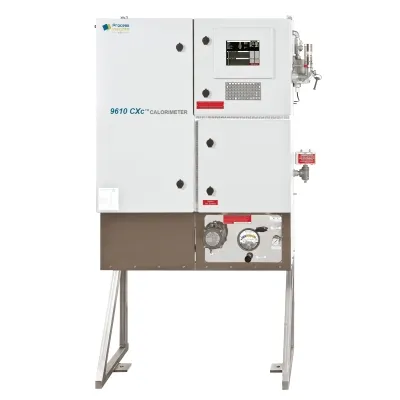

COSA XENTAUR - Model 9610 CXc -Continuous BTU Calorimeter for Gas Analysis
The 9610 CXc Continuous BTU Calorimeter by COSA XENTAUR is specifically designed for measuring the Wobbe Index, BTU/Heating Value, and Combustion Air Requirement Index (CARI) of various gas mixtures. It offers high accuracy results even under changing ambient temperatures, making it essential for industries requiring precise calorific value measurements, such as the natural gas sector. This instrument utilizes a continuous gas sample oxidation process at 800°C in the presence of a catalyst, measuring residual oxygen with a zirconia oxide cell after combustion. The 9610 CXc is able to analyze a range of gases including natural gas, refinery gases, and biogas. It provides a rapid response with full integration of hydrogen measurement capability and supports multiple output options via Modbus communication. This calorimeter is equipped with optional pumps for sample control and offers high-temperature sample systems up to 100°C. Its notable certifications ensure safety and reliability in various operational environments.Our COSA XENTAUR™ 9610 CXc™ continuous BTU Calorimeter measures Wobbe Index, BTU/Heating Value and CARI (Combustion Air Requirement Index). Key advantages of this calorimeter are its insensitivity to changes in ambient temperature, a very fast response with the ability to measure gases with BTU values down to zero and the measurement of the Combustion Air Requirement Index besides Wobbe Index and Heating Value. Using our 9610 CXc calorimeter continuous gas analyzers with expert design make BTU analysis a definitive money saving tool!
In the USA, don’t wait 6 months for a calorimeter. Ask our Calorimeter Experts about our fast delivery options!
Our 9610 CXc calorimeter Wobbe Index measurement is based on the analysis of the oxygen content in the flue gas after combustion of the sample. A continuous gas sample is mixed with dry air at a precisely maintained constant ration, which depends on the BTU range of the gas to be measured. The fuel air mixture is oxidized in a combustion furnace in the presence of a catalyst at 800°C, and the oxygen concentration of the combusted sample is measured by a zirconia oxide cell.
Some of the features of using the 9610CXc BTU Calorimeter include:
- High Accuracy: Provides highly accurate results for measuring the calorific value of fuels, with a precision of +/-0.2%.
- Large Measurement Range: Has a wide measurement range, making it suitable for measuring the heating value of various liquid and gaseous fuels.
- Fast Response Time: Has a fast response time, providing results within minutes, making it suitable for real-time monitoring and control of fuel quality. T90 it 5 seconds.
- Measures Low BTU Gases
- Low Maintenance
- Flameless/ No Flameouts
- Measures Wobbe and CARI
- Hazardous Area Approved
- No Special Enclosure REquired for Outdoor Use
- Integrated optional pumps for sample control of inlet and outlet.
- Internal sample system up to 50°C with options to 100°C
- Full measurement range 0-3000 BTU/SCFH option
- Hydrogen Measurement fully integrated into analyzer including power and communications.
Some of the benefits of using the 9610 CXc BTU Calorimeter include:
- Low Sample Volume: Requires a small sample volume, which reduces the amount of fuel required for testing and minimizes waste.
- Easy to Operate: Easy to operate, with a user-friendly interface and intuitive controls.
- Durable: Made of high-quality materials and is designed for durability and long-term use.
- SCC at 50°C and 100°C
- Bypass stream to flare
- Furnace at 800°C
- O2 Cell in furnace
- SG Cell required for BTU
- 20+ years pf proven reliability
- Standing mount included
- Large cabinet area ease of maintenance
- Global service and repairs
- Optional SG Cell for BTU measurement
- Certified: US/Canada: Class I, Division 2, Groups A, B, C, D IP66, ATEX: II 2 G Ex ib px IIC T3 Gb Ta = +5°C to +45°C; IP66, IECEx: Ex ib pxb IIC T3 Gb Ta = +5°C to +45°C; IP66
The 9610 CXc BTU Calorimeter is a specialized instrument used to measure the heat value of a wide range of gas mixtures. It is commonly used in the natural gas industry for quality control purposes and to ensure the safety of gas-fired appliances.
Some of the applications include:
- Energy Monitoring and Efficiency Testing: Used to measure the heat content of various gas mixtures, making it an essential tool for energy monitoring and efficiency testing. By accurately measuring the heat value of different gas mixtures, it is possible to optimize combustion processes and improve energy efficiency.
- Gas Quality Control: Used in natural gas processing plants to ensure that the gas being produced meets the required heating value. By continuously monitoring the heat value of the gas, the instrument can detect any changes in gas composition and help operators adjust the process accordingly.
- Safety Monitoring: Used to monitor the safety of gas-fired appliances. By measuring the heat value of the gas being supplied to the appliance, it is possible to detect any abnormalities that could lead to inefficient or incomplete combustion, which could result in the production of carbon monoxide and other harmful gases.
- Emissions Monitoring: Used to monitor emissions from gas-fired appliances. By accurately measuring the heat value of the gas being combusted, it is possible to determine the efficiency of the combustion process and the amount of pollutants being released into the environment.
