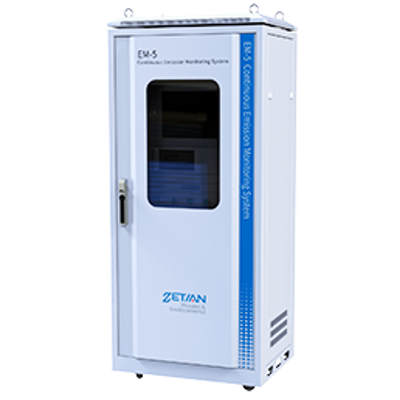

Zetian - Model EM-5 -Continuous Emission Monitoring System (Cl2 Detection)
Based on years of experience on UV technology, EM-5 Continuous Emission Monitoring System (Cl2 detection) is a new monitoring product for measuring chlorine. It is composed by dust monitoring subsystem, gaseous pollutant monitoring subsystem, flue gas parameter monitoring subsystem, and system control & data acquisition & processing subsystem. It can be used to monitor Cl2, O2, dust, temperature, pressure, velocity, humidity in chlor-alkali industry.
Most popular related searches
continuous emissions monitoring system
emissions monitoring system
continuous emissions monitoring
emissions monitoring
chlor-alkali industry
UV system
measurement chlorine
chlorination monitoring
compressed air
gaseous pollutant
- Secondary condensation for fast water removal and cooling, decreasing contact time between gas and water and reducing Cl2 loss.
- Adopt mild heat tracing technology, less maintenance of measuring cell.
- High measurement accuracy, detection limit as low as 0.5ppm.
- Adopt anti-corrosion material, can be applied in corrosive occasion.
- Without cross interference by CO, CO2, CH4, NH3, moisture or other organic substances.
- Compact structure, high reliability, convenient for transport and installation.
- Applied in occasions requiring chlorine monitoring such as chlor-alkali industry and exhaust emission, etc.
- Cl2: 0~100ppm (customizable).
- O2: 0~25%.
- Dust: 0~5mg/m3, 0~50g/m3.
- Velocity: 0~40m/s (customizable).
- Temperature: 0~300℃ (customizable).
- Pressure: -10kPa~10kPa (customizable).
- Dimension: 800mmx600mmx2000mm.
- IP grade: cabinet IP42, others IP65.
- Power supply: (220±15%)VAC, 5000W.
- Working temperature: -20℃~50℃.
- Working humidity: 0~95%RH (non-condensing).
- Compressed air: (0.4~0.8)MPa, 0.25m3/min, clean, oil-free & water-free.
