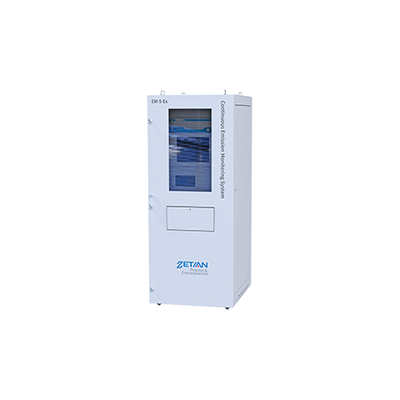

Zetian - Model EM-5-Ex -Continuous Emission Monitoring System (Cold-Dry)
Based on standard Continuous Emission Monitoring System (Condensation), our company has developed a Positive-pressure Explosion-proof Continuous Emission Monitoring System. EM-5-Ex Continuous Emission Monitoring System is composed by explosion-proof dust monitoring subsystem, explosion-proof gaseous pollutant monitoring subsystem, explosion-proof flue gas parameter monitoring subsystem, and system control & data acquisition & processing subsystem. It can monitor SO2, NOX, O2, dust, temperature, pressure, velocity, etc. Other parameters can be extended as required for special occasions, such as HCl, HF, CO, CO2, humidity, etc.
Most popular related searches
continuous emissions monitoring system
emissions monitoring system
continuous emissions monitoring
emissions monitoring
gas monitoring
explosive monitoring
explosion monitoring
gaseous pollutant
sampling pump
pollution monitoring
- Equip with whole series of explosion-proof subsystem to ensure security of monitoring system and personal safety of filed person.
- Secondary condensation for fast water removal and cooling, decreasing contact time between gas and water and reducing SO2 loss.
- Adopt mild heat tracing technology, less maintenance of measuring cell.
- Fast sampling via loop sampling pump, shorten response time.
- Realize full-course calibration and zeroing.
- Without cross interference by CO, CO2, CH4, NH3, moisture or other organic substances.
- Multi-stage filtering of dust and water removal, simple structure and high reliability.
Applied in dangerous gas monitoring site such as crude oil processing and chemistry.
- SO2: 0~300~3000ppm, O2: 0~25%.
- NOX: 0~300~3000ppm, humidity: 0~40%.
- Dust: 0~200mg/m3, 0~10g/m3.
- Velocity: 0~40m/s (customizable).
- Temperature: 0~300? (customizable).
- Pressure: -10kPa~10kPa (customizable).
- Dimension: 800mmx800mmx2000mm.
- Tracing temperature: 120?~180?.
- IP grade: IICT4.
- Power supply: (220±15%)VAC, 4000W.
- Working temperature: -10?~40?.
- Working humidity: 0~95%RH (non-condensing).
