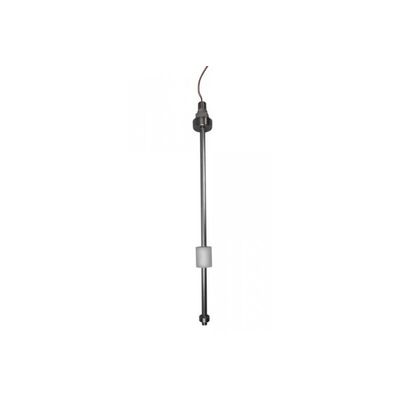

MadisonModel C4651-12802 -Continuous Float Level Sensor

SHARE

Continuous float level sensor, stainless steel and polypropylene, 16" sensing length. Provides tank level indication and control of tanks with restricted or limited access. Precise monitoring in mixing tanks. Interface between two dissimilar liquids such as oil and water. Central monitoring of remote multiple tanks. Ideal for water based fluids or petroleum or chemicals for industrial tanks. Designed for many years of service. Analog continuous level output can be combined with PLCs, digital panel meters, or other devices to provide ‘up to the minute’ level readout and fluid level control.

Most popular related searches
  • Precise, uninterrupted tank level readout and control with ¼” resolution
  • Stem length of 18.63” and sensing length of 16”
  • Other models available in lengths up to 96”, with resistive or 1-5Vdc output
  • Durable stainless steel stem construction with polypropylene float
  • Fits standard 1 ½” NPT bungs
  • Custom configurations available through the Madison online configurator
  • Approvals : CE, UL
  • Float Diameter : 1.5" OD
  • Stem Material : 316 Stainless Steel
  • Float Material : Polypropylene
  • Float SG : 0.77
  • Input Voltage : 12-30 VDC
  • Max Temperature : -40 to 221°F (-40 to 105°C). Non-freezing liquids
  • Mounting : 1-1/2" NPT Pipe Plug
  • Output : 4-20 mA
  • Resolution : 1/4"
  • Sensing Length : 16"
