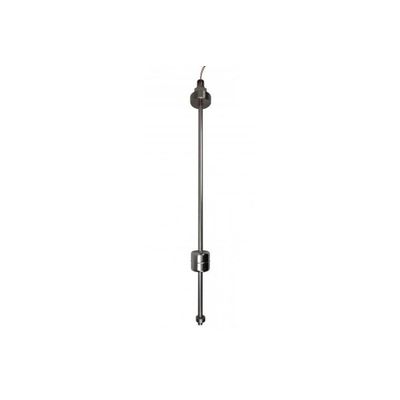

Madison - Model C4651-12803 -Continuous Float Level Sensor, Stainless Steel, 21.13` Sensing Length
Continuous float level sensor, stainless steel, 21.13" sensing length; Provides tank level indication and control of tanks with restricted or limited access. Precise monitoring in mixing tanks. Interface between two dissimilar liquids such as oil and water. Central monitoring of remote multiple tanks.. Ideal for water based fluids or petroleum or chemicals for industrial tanks. Designed for many years of service.
Most popular related searches
float level sensor
level sensor
digital panel meter
tank level monitoring
level controller
tank level control
level indicator
pipe plug
oil-water monitoring
water monitoring
- Analog continuous level output can be combined with PLCs, digital panel meters, or other devices to provide ‘up to the minute’ level readout and fluid level control
- Precise, uninterrupted tank level readout and control with ¼” resolution
- Stem length of 24” and sensing length of 21.13”
- Other models available in lengths up to 96”, with resistive or 1-5Vdc output
- Durable stainless steel stem and float construction
- Fits standard 2” NPT tank fittings
- Custom configurations available through the Madison online configurator
- Approvals : CE, UL
- Float Diameter : 2.13" OD
- Stem Material : 316 Stainless Steel
- Float Material : 316 Stainless Steel
- Float SG : 0.55
- Input Voltage : 12-30 VDC
- Max Temperature : -40 to 221°F (-40 to 105°C). Non-freezing liquids
- Mounting : 2" NPT Pipe Plug
- Output : 4-20 mA
- Resolution : 1/4"
- Sensing Length : 21.13"
