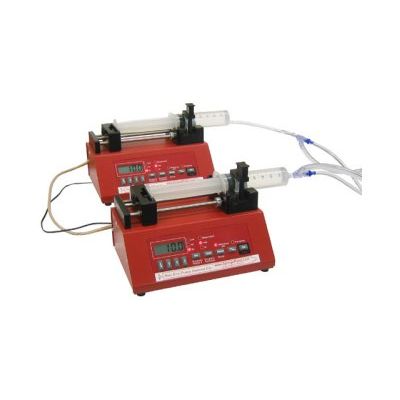

Model DUAL-NE-1000X -Continuous Infusion Syringe Pump System
Eliminates Flow Rate Pauses & Drop-Offs The DUAL-NE-1000X Continuous Pump System consists of two NE-1000 syringe pumps along with the X Upgrade chips and attached with a dual cable. The DUAL-NE-1000X Continuous Pump System eliminates the problem of flow rate drop-off found in Push-Pull syringe pump systems. Push-Pull systems functions are when one pump is refilling while the other infuses and then they switch directions. The switch of directions causes a delay in flow. Our DUAL-NE-1000X Continuous Pump System offers a flexibility for the pumps to perform either continuous flow, emulsification or independently at any time.
Most popular related searches
syringe pump system
syringe pump
pump system
infusion syringe pump
programmable syringe pump
syringe pump operation
glass disposal
utility pump
interface monitoring
monitoring pump
- Refilling pump refills the syringe at a faster rate than the infusing pump, giving it time to prime the syringe.
- Refilling pump pauses and waits for the infusing pump to empty.
- When the pumps switch directions, the refilled pump is primed and starts infusing at the set rate immediately.
- Holds 2 syringes up to 60 cc
- Infusion rates from 0.73 µL/hr (1 cc syringe) to 2100 ml/hr (60 cc syringe)
- Requirements: 2 Pumps from the NE-1000X family of syringe pumps (any 2 NE-1000 family of syringe pumps with an X upgrade in each pump.) Pumps can be different models. 1 dual pump cable (part #CBL-DUAL-3).
- Easy-to-use keypad interface
- Includes all the advanced functions and programming features of the NE-1000 family
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
- Dual Pump Plumbing Kit, the syringes and plumbing seen in the above picture, completes the continuous system. (Sold separately)
- Download Brochure
- Utilizes specialized dual pump sync cable kit to synchronize both pumps, a command on one pump will update the other on the fly.
- Includes: 2 NE-1000X programmable single syringe pumps, sync cable kit, and two power supplies
- Flexibility for the pumps to perform either continuous flow, emulsification or independently at any time.
- Built for automation
- Operates stand-alone or from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Applications range from simple infusions to complex pumping programs
- Programmable preset protocols
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- RS-232 and TTL logic control interfaces
- Network, control, and monitor up to 100 pumps with one computer.
- Gradient ramping of flow rates
- Worldwide power supplies available
- Motor stall detection
- Non-volatile memory of all parameters and programming
- Upgradable to 340 pumping phases program memory with the X2 Upgrade
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
