Continuous Sealers

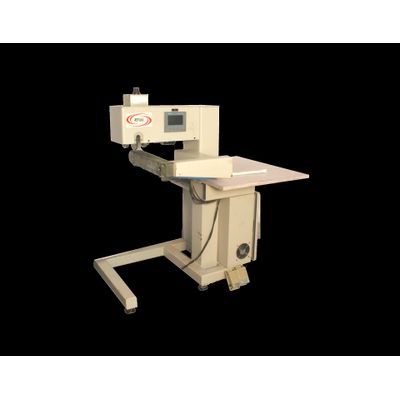

Ultrasonic continuous sealers provide a big benefit over conventional stitching methods. The system can perform two manufacturing processes in one flow i.e (Cut & Seal), there is no wearing due to steel sonotrode and prevents the material from fraying. The Ultrasonic Sealing System is designed with a motor, roller, electronic control & working table for sealing of Fabrics, Plastic Films, Laminated paper, Non-Woven Fabrics, Filters, etc. It is a versatile Machine and the location of the horn and anvils enable flexibility and tight turns in sealing, This also provides an unobstructed view of the fabric in the processing area.
| Ultrasonic Generator |
SG-40-36-1000W/ SG -22-1000W |
| Ultrasonic Converter |
36KHz/SE 40/33 , 20KHz/SE 50/44 |
| Horn | Titanium |
| Working GSM |
50-140/ Upto 300 |
|
M S Roller anvil for Stitching |
Yes, 60 mm Dia |
| Booster with ring | Yes (Titanium) |
|
Foot Switch |
10 Amp/ 250 V |
|
Bottom Legs |
M12 x 80 mm length |
|
Weld area (Width in mm) |
30 mm x 10 mm (max) |
| Ultrasonic Generator |
UHG-35-1000W |
| Ultrasonic Converter |
35 KHz/SE 3512 |
| Horn | Titanium |
| Working GSM |
Upto 200 |
|
Rotary motor for Sealing head |
Yes |
|
PLC + HMI (for system controls) |
Siemens made |
|
Foot Paddle |
2 Nos |
|
Bottom Legs |
M12 x 80 mm length |
|
Weld area (Dia in mm) |
6 mm (max) |
|
Proportional valve |
Festo made |
- Protective garments
- Disposable hospital gowns
- Shoe Covers
- Face Masks
- Infants’ nursery garments
- Filters
- Bags
- Curtains
- Sails and web splicing
- Sealed edges and seams with no stitch holes prevent penetration of chemicals
- liquids
- Bloodborne pathogens , or particulates
- Filter bags
- Health care articles
- Medical mattresses and pillows
- Needle felts
- Operations sheets
- Foils
- Bullet proof vests
- Blinds and awnings
- Pleated filter
- Shower curtains
- Spacer fabrics
- Seat covers
- MBR-modules
- Outdoor garment
- Medical garment & drapes
- Sport garments
- Vehicle interior and insulation item
- Protective cat covers
- Sunshades and many more
