isoplus Fernwärmetechnik Ges.m.b.H.

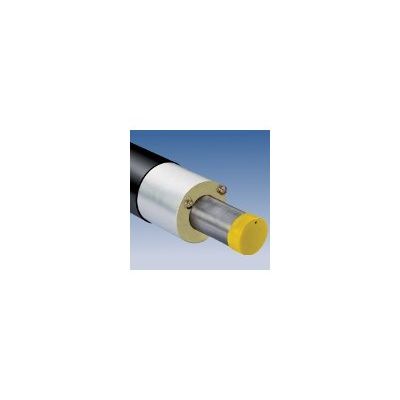

isoplus - Continuous Single Pipe
isoplus single pipes are produced in discontinuous and continuous production (with diffusion barrier layers). The basic information provided here can vary depending on production methods. A more detailed list of all options can be found in our latest catalogue which is available to access free of charge from our download area.
Most popular related searches
Application data
- max. permitted op. temp. min. EN 253
- max. permitted op. press. 25 bar
- standard supply lengths 12m or 16m*
- available dimensions DN25-DN200
- network monitoring IPS-Cu
available supply lengths are dependent on the selected dimensions. For further information on this, please refer to our catalogue.
Information on materials
- Medium pipe material P235GH/TR1/TR2
- Casing pipe materialhigh-density polyethylene (PEHD)
- Insulation materialpolyurethane rigid foam normal, 1x or 2x increased
