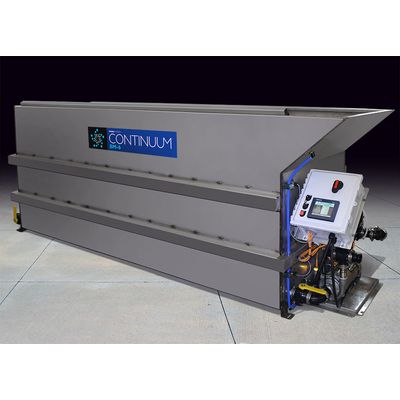

Continuum - Model BM-6 -Brine Maker
Brine Masters™ Continuum™ BM-6 is a high-performance, high-capacity brine maker capable of producing up to 6,000 GPH. This brine maker outperforms anything else in its class. Streamlined, self-calibrating controls and automatic salinity management with our patent pending salinity meter all combine for the most user-friendly brine making experience. Maintains salinity at low salt levels. Compatible with treated or plain salt.
Salinity Control: Fully Automated
Accuracy: +/- 0.10% SG
Brine Measurement: Density
Density Calibration: Fully Automated Self-Calibration
Compatible with Treated or Plain Salt: Yes
User Interface: 5.7″ Color Touch Screen & Push Button
Data Logging: Yes
Built-in Self Diagnostics: Yes
Cellular Remote Access: Optional
Storage Tank Level Monitoring: Optional
Volume Measurement: Yes with Optional Tank Level
Controls Cabinet Weather-proofing: NEMA 4X
UL Listed: Yes
Production Capacity: Up to 6,000 GPH
Overall Dimensions: 128″ x 45″ x 52″H
Basic Design: Side Flow
Clean Out Type: Automated Continuous Self-Cleaning
Clean Out Opening: 13.625″ x 3.625″
Hopper Capacity: 3.3 Cubic Yards
Hopper Opening: 120″ x 40″
Hopper Extensions: Optional
Hopper Opening w/ Extensions: 156″ x 40″
Hopper Construction: 10-gauge 304 Stainless Steel
Water Supply: 2″ or Less
Valve Type: Electric Ball Valve
Salinity Meter: Proprietary Patent Pending Design
Pump Design: Close-Coupled/Centrifugal
Pump Construction: Cast Stainless Steel
Pump Motor Design: Washdown Rated/Inverter Ready
Pump Motor Construction: Stainless Steel
Pump Motor Rating: 3 HP
Pump Motor Drive: Fixed Speed
Pump Motor Voltage/Phase: 110 or 220/1
Cellular Remote Access
Storage Tank Level Monitoring
Hopper Extensions
Outdoor Installation Package with Relocated Controls
