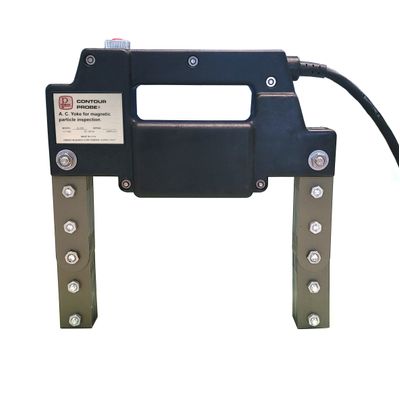

PARKER -Â Model A-210 SUPERLIFT -Contour Probe for Surface Defect Detection
The A-210 SUPERLIFT Contour Probe is engineered to generate a powerful AC magnetic field, facilitating the detection of surface defects and performing demagnetization following inspections. Constructed with a robust molded housing and equipped with articulating legs for flexibility, this probe can adapt to nearly any surface contour or part, whether used in laboratory, factory, or field environments. This tool has become an industry benchmark over 45 years for non-destructive testing (NDT) applications, offering versatility and reliable performance. It supports line voltages of 115 VAC at 60 Hz and 230 VAC at 50/60 Hz with a line current of 6 A at 115 VAC and 4 A at 230 VAC, and has a duty cycle of 50%. The unit is designed with a glass-filled nylon housing and comes with a 10-foot, 3-wire power cord, weighing 12 lbs. The magnetic span is 457 mm across poles, catering to both AC and DC applications.
- IP51
- Handheld AC Magnetic Yoke
- Most powerful AC yoke available
- Versatility and powerful performance in a rugged, reliable instrument
- Apply continuous magnetic fields and demagnetize too
- Use with dry powder, wet fluorescent or visible
- High impact-molded housing
- One-year repair/replacement guarantee
- 230VAC model available with CE certification at an additional cost
The AC instrument produces an intense AC field for detection of surface defects and demagnetizing after inspection. Combined with the flexibility of articulating legs and a rugged molded housing, the Contour Probe can be used on nearly any part or surface contour… in the lab, factory, or field site.
Your magnetic particle applications need the versatility and reliable performance advantages of the Parker Contour Probe. An industry standard with 45 years of NDT service.
