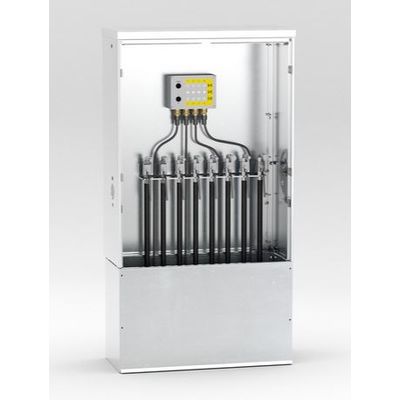

Vexve - Model HCU Basic -Control Cabinet

HCU Basic is the most simplified version of the Hydrox product family’s control units. It is the right choice when a flexible control option is needed. Vexve provides a wide range of control units to meet the requirements of the customers and operating environments.

Most popular related searches

control cabinet

pump system

control valve

hydraulic pump system

Control unit

Control unit for controlling two or four valves equipped with hydraulic actuators.

Dimensions for four valve control unit 682 x 895 x 312 mm (W x H x D)
Dimensions for two valve control unit 350 x 1200 x 220 mm (W x H x D). Note! Including plinth
Protection class: IP34
Fluid temperature: −20 – +80 °C
Ambient temperature: −20 – +50 °C

Control valve block

Control valves: 4/8 pcs (2/4 valves)
Max. pressure: 350 bar
Positions of lever: 2 (valve open – valve shut)
It is possible to control only one valve at a time with one electro-hydraulic pump unit

Indicator lamp panel

Indicates open, middle and shut positions of valves
Low voltage powered with battery
Connected to position transmitter on the actuator

Connection for portable pump unit

Quick couplings with flat face casing
Pump unit includes transportation box, hydraulic hoses and electric cable
