Vexve - Model HCU Manual -Control Cabinet
FromVexve Oy
The HCU Manual is the basic version of a full range of control possibilities for Vexve hydraulic actuators. It is the right choice where simplicity is key and secure operation is needed at all times.
Most popular related searches
control cabinet
control valve
pump system
hydraulic actuator
portable pump
pressure gauge
check valve
monitoring cabinet
water reservoir

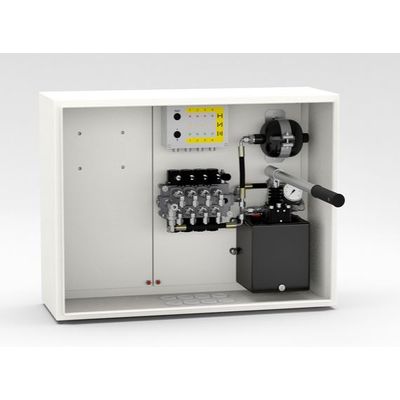

Control cabinet for 4 valves
- Dimensions 800 x 600 x 300 mm (W x H x D)
- Protection cIass IP65
Hand pump
- Double acting hand pump with pilot check valves
- Fluid viscosity: 10−500 mm2 /s
- Filtration: ISO code 16/13; SAE class 4 or better
- Fluid temperature: −20 °C − +80 °C
- Ambient temperature: −20 °C − +50 °C
- Max. pressure: 380 bar
- Pressure limiter: 200 bar (adjustable)
Oil tank
- Reservoir capacity: 5 l
Control valve block
- Control valves: 4 / 6 pcs.
- Max. pressure: 350 bar
- Positions of lever: 3 (Valve open – Neutral – Valve shut)
- It`s possiböe to maneuver one valve at a time.
- Range: 0…315 bar
- Indicated open and shut positions of valves
- Low voltage powered
- Connected to position transmitter on actuator
- Quick couplings with flat face casing
- Pump unit (sold separately) incl. transportation box, hydraulic hoses and electric cable
