SAM - Control System

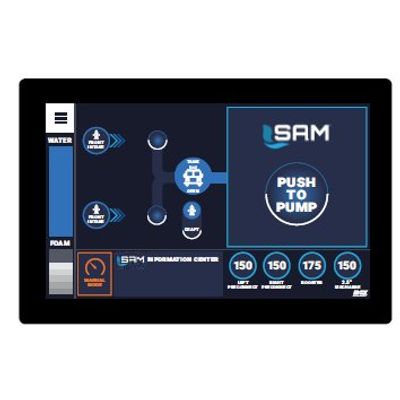

SAM is an integrated total water flow control system that manages your truck’s, pump, tank, intakes and discharges. A touch-screen display, provides a simplified interface that totally transforms traditional pump operations. The SAM control system provides complete control of the flow to and from the pump from two interfaces, the SAM control center and the pump controller. INTRODUCING: The NEW SAM Smart Nozzle with N2P Technology is an option on all new and existing SAM Integrated Total Water Control Systems. Emergency Responders: Learn more about SAM at samflows.com
The SAM control center provides the user with an overview of the status of intakes, discharges and tank at a glance and allows for quick, efficient control of the water flow.
The system does the following:
- Automatically opens the tank to pump valve when it sees it is in pump gear.
- When the operator then selects a discharge, sets a pressure for that discharge then SAM charges the line and adjusts engine speed as needed and maintains the desired set pressure for each discharge.
- Automatically transitions to an external water source. When an external water source is ready the operator selects the intake, tells the system to open it and SAM takes action.After transitioning to external source, the system refills the tank
- If transitioning to a pressurized source the system will bleed air from the line, open the intake valve and manage the engine speed during transition to keep discharge pressure steady.
- If drafting, the system will pre-prime up to the intake valve then open the intake once the prime has been established.
- Emergency Responder OEMs
- Fire OEMs
- Firefighting - Airport (ARFF)
- Firefighting - Industrial
- Firefighting - Structural
- Specialty Vehicles
Style: SAM
Country of Manufacture: US
Weight: To Be determined based off final configuration
Brand: SAM
Length: To Be determined based off final configuration (To Be determined based off final configuration)
Width: To Be determined based off final configuration (To Be determined based off final configuration)
Height: To Be determined based off final configuration (To Be determined based off final configuration)
