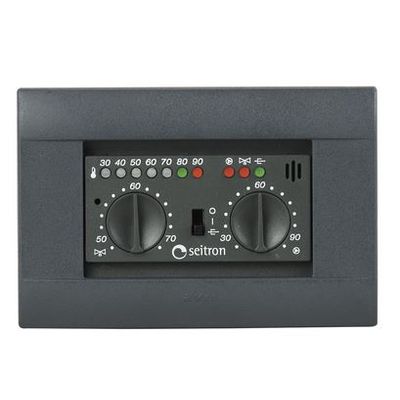

Fuego - Model CIE001MD -Control Unit for Thermo-Fireplace
FromSeitron S.p.A.
Control unit for thermo-fireplace Fuego 2 for 3 modules junction boxes. Heating and sanitary water temperature adjustment with two knobs. Led indication and acoustic alarm for water overtemperature. Relay outputs driving a circulation pump, a valve and a grill. Plastic colour: RAL 7016. Suitable for frames type B-TICINO (Living), AVE (Sistema 45), VIMAR (Idea), (not included).
Most popular related searches
- Power supply 230V~ ±10% 50..60Hz
- Output (relay) 5A @ 250V~ SPST (max. tot.)
- Sensor NTC (4K70hm@25°C)
- Working range: heating/sanitary water 30 .. 90°C/ 50 .. 70°C
- Red LED indicator Pump active
- Green LED indicator Grill on
- Red LED indicator Valve open
- 7 LED thermometer 20 .. 90°C Water temperature
- Buzzer alarm Temp. H2O>90°C
- Anti-frost 5°C
- Slide switch Off/on/grill
- Dimensions H110 W60 D56mm
- Protection grade IP20
- Class Reg.2013/811/EC I = 1,0%
