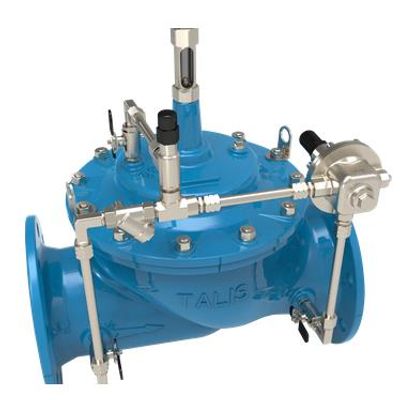

Hydrobloc Premium - Control Valve
Based on the latest developments of the Hydrobloc system, The Hydrostab Premium uses high quality materials and a proven design to guarantee our customers exceptional service life, accuracy and Functionality.
Most popular related searches
PERFORMANCE
- High accuracy on the set reference value
- High stability at all flowrates with the SPD system
- High flow coefficient
DURABILITY
- Pilot circuit and internal mechanism in stainless steel 316
- Preformed diaphragm high density
- Coating 250 μm
FUNCTIONALITY
- Ease of installation and commissioning
- Easy maintenance
- Pressure gauges included
- PFA 10, 16 or 25 bar depending on the applications (PFA 40 bar, please consult us)
- DN 40 to 300 with standardised flanges
- Leak-tightness at nil flow rate
- Operating temperatures from 0 °C to 65 °C
- Flow medium: 2 mm screened potable or raw water
- Optional anti-cavitation kit ACD040 with slotted cylinders
- Assembly of the pilot circuit on the right strand as standard, on the left strand by request
- Numerous options available on the main valve or the pilot device.
