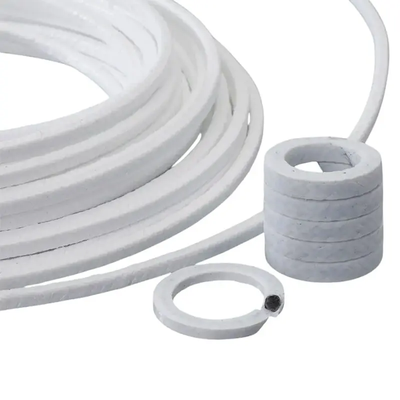

Magpie - Model MV-20250722-PP-01 -Control Valve Braided Packing Seal
The Control Valve Braided Packing Supplier offers low-friction packing specifically designed for control valves. This packing features a carbon fiber core for strength and durability, wrapped in a PTFE sleeve for smooth operation and chemical resistance. It can handle pressures ranging from 80 to 300 bar and is available in customized dimensions to fit various valve specifications. This high-performance packing ensures reliable sealing and efficient operation in control valve applications.
- Product Name: Low-Friction Packing for Control Valves
- Material: PTFE (Sleeve), Carbon Fiber (Core)
- Dimensions: 4.7 x 5 mm, 6.5 x 6.5 mm, 8.0 x 8.5 mm, 9.2 x 10 mm, 12.5 x 13.2 mm, 16.0 x 16 mm
- Pressure: 80-300 bar
- Speed: < 1 m/s
- pH: 0 - 14
- Operating Temperature Range:
- Minimum: -100 °C (-148 °F)
- Maximum: 300 °C (572 °F)
- Usage: Control Valves
- Applications: Chemical, Paper, Food industry
- Fluids: Suitable for all fluids
Packing for industrial valves designed to slide rather than rub, ensuring efficient sealing with minimal friction. Consists of a braided core made from PTFE-impregnated carbon yarns and a sleeve made from braided, impregnated, and lubricated PTFE yarns. Its elastic composite structure ensures sealing efficiency with a low tightening torque, reducing power consumption and minimizing emissions while greatly improving fluid sealing. LATTYflon 3265LM contains a corrosion inhibitor developed from an exclusive process to provide unlimited protection against corrosion of the stem, stuffing box housing, and stuffing box over time. Available in preformed packing rings upon request.
