Primex- a Trademark of SJE-Rhombus

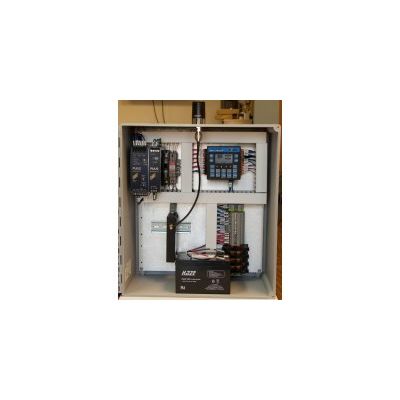

Healy-Ruff - Model HRC1000 -Controller
The Healy-Ruff HRC1000 is a feature-rich device that can provide control and/or monitoring to your water and wastewater infrastructure. It combines the finest equipment and workmanship in the industry, with standard application solutions, flexible I/O and multiple communication and telemetry options. The HRC1000 can be implemented in new installations or be used to retrofit/upgrade existing stations by adding open-architecture PLC-based control and/or remote monitoring with traditional telemetry and/or Cloud-based SCADA solutions.
Most popular related searches
cloud-based SCADA
booster station
lift station
wet well
level controller
wet well tank
cloud SCADA
rain gauging
current flow
remote monitoring
Easy to Install and Use
- Micro-VPAC II open-architecture PLC
- Graphical User Interface
- 12 Digital Inputs
- 6 Digital Outputs
- 4 Analog Inputs
- No buttons or switches – all control through password protected PLC controls
- Battery backup
- Built-in lightning protection
- All field wiring to terminal blocks
- Secure Installation
- NEMA 4X Non-metallic enclosure
- Blind Front w/Padlock-able Hasp
- Serialized UL-label and O&M Manual
- Standard or Custom Applications
- Level Control
- Constant Speed Pumping
- Variable Speed Pumping
- Remote Tanks
Typical Applications
- Booster Stations
- Lift Stations
- Tanks and Valves
- Well Fields
Telemetry Options
- Fiber Optic
- Leased Lines
- VHF Radio
- UHF Radio
- Spread Spectrum
- Cellular
- Satellite
SCADA Options
- Modbus Master / Slave
- Wonderware
- iFix
- Systemanager
- Cloud-based SCADA
- Secure, Remote Access from any Computer
- Dynamic Process Graphics
- Status and Trend Screens
- Setpoint and Equipment Control
- Alarm Management
- Data and Reporting
Lift and Booster Stations and Well Sites
- Pump Control
- Hand-Off-Auto
- Multiple Pump Circuits
- Constant Speed
- Variable Speed
- Pump Starts and Run Times
- Yesterday
- Today
- Cumulative Total
- Pumps Called / Running
- Pump Failure
- Seal Failure
- High Temperature
- Wet Well, Clear Well or Tank Levels
- Station Influent and Effluent Flow
- Discharge Pressure
- Chlorine, pH or Other Analog Signals
- Motor Current
- Flow Pulse
- Rain Gauge
- Control Power Failure
- Phase Failure
- Generator Running
- Station Intrusion
- Station Temperature
- Communication Failure
Tank and Valves Sites
- Tank Levels
- System Pressure
- Valve Control
- Station Flows
- Power Failure
- Station Intrusion
- Communication Failure
- Secure, Remote Access from any Computer
- Dynamic Process Graphics
- Status and Trends Screens
- Setpoint and Equipment Control
- Alarm Management
- Data and Reporting
