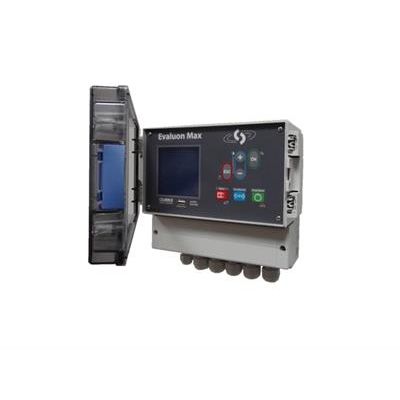

Colberge - Model Max -Controllers

Inputs:
Measurement Inputs

• 1 x potentiometric input +/1000mV;
• 2 x 4 .... 20 mA entries powered 24 V or 12V;
• 1 x RTD (PT100) Tempereature;

Control Inputs:

• 2 x programmable pulse input;

Outputs:

• 2 Analogue 4 ... 20 mA recopy the measurement or regulation;
• RS485 BUS line output, communication port with MODBUS RTU protocol;
• 2 x pulse or 2 x power relay outputs.

• Multiple measurement parameters;
• USB port to register values and alarms;
• Modular sensors holder
• (single or single + flow detector or double + flow detector);
• Measurement and control of two parameters:
• From a specific sensor;
• From a combination of one or more sensors;
• Power supply 230V AC 50 Hz;
