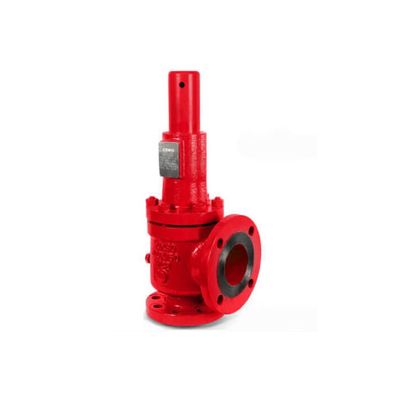

CBRO - Conventional Safety Relief Valves
‘CBRO’ Conventional Safety relief valve is becoming increasingly popular among different industrial communities. The reason for such increased demand due to its ability to control and check the pressure of fluids along with diverting the routes for transporting them in designated outlets. These valves are made of various durable metals and can withstand high temperature till a specific limit. Safety relief valve helps in regulating fluid movements. For checking pressure, there is no better alternative than pressure relief valve. When it comes to checking boiler temperature then thermal relief valve is the best.
Design Standard: API 520
Performance Standard: API 526
Seat Tightness Test: API 527
End Connection: Flanged To ASME B 16.5 & Butt Weld To ASME B16.25
- Flanged To ASME B 16.5 & Butt Weld To ASME B16.25
- Full Lift Pop Action Design
- Open Bonnet With Leve
- Stellited Nozzle & Disc Seating Area
- Soft Seat with P.T.F.E., Peek & Viton
- Balance Bellows Type Safety Relief Valve
Size: 1” X 2” Thru 8” X 10”
Rating: 150# X 150# Thru 2500# X 300#
End Connection: Flange End
Blow Down Pressure: 10% Less Then Of The Set Pr.
Hydrostatic Test Pressure: 1.5 Times The Set Pressure
Overpressure: 10% Of The Set Pressure
Orifice Designation: D Thru T
Material: WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3,CF3M,CF8C, CN7M, CD4MCu, Hast alloy, Inconel, Duplex, Stainless Steel.
