Liftube - Conveyor Belt Skirting Systems

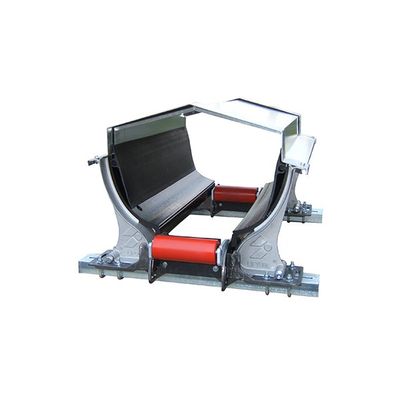

Our accessories for conveyor belt : your answer for problems of sealing and safety. The patented LIFTUBE and the dust-collector are accessories for conveyor belt. The LIFTUBE® system enables the belt to run on a central horizontal tilting roller and to slide on the edges, which also tilt. A removable hood can be adapted to the equipment to reduce belt conveyor dust emission. Only the size of the hood and the central horizontal roller depends on the width of the conveyor. The conveyor belt and rollers can be easily accessed thanks to innovative tilting glideboards.
Most popular related searches
conveyor belt
belt conveyor
dust emissions
conveyor belt optimization
dust emissions control
conveyor belt skirting
dust collector
air filter cleaning
particle sizing
fine dust
The dust-collector is a 2m-LIFTUBE® kit with filtering unit atop of hood – air-jet filter cleaning. Allow reduction of very fine dust emission just after discharge.
- Belt width: from 500 to 1400 mm
- Belt speed: 0.05 to 5 m/s
- Output: Up to 1500 tons/h
- Particle size : up to 500 mm
- Density: up to 4
- Product temperature: up to300°C (570 °F)
- Standard & evolutive modules
- Suitable for both new or existing conveyors
- Environment: Dust emissions reduction between the loading and off-loading points: compliance with current standards (ISO 14001)
- Quality: Contamination free for your product/Longer service life of the belt
- Total Safety: Protection of pinch points in accordance with official norms
- Savings: No change in the existing structure/optimization of output/no loss of production
- Maintenance: Easy & quick access to the belt during maintenance operations
- Modular: Standard, adaptable and evolutive elements on new or existing conveyors/Installation on all or part of the conveyor/Compatible with reversible belt
- Visits & technical recommendations (proportioning and layout)
- Supply of the installation plan
- We offer complete installation of our equipment if needed
- Up to 3-year warranty
- On-site & external training (STANDARD INDUSTRIE training institute: IFSI – No. 31 59 05660 59)
- After-sales service & maintenance contract
- Statutory monitoring
- ATEX/Food industry/Auto-extinguishing
- High temperature (product temperature up to 300°C /570°C)
