HMG-Hess - Model HMG BG 100 -Conveyor Belts

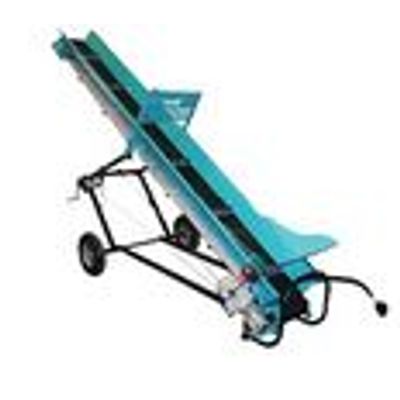

Telescopic conveyor belt 4m or 5m. Senior conveyor technology! Oven ready firewood or similar materials can be power-saving loaded with an HMG conveyor belt for storage or transportation. Optionally, a 4 m or 5 m long strip with a discharge height of up to 3.90 m is available. The telescopic conveyor belt can be mechanically attached quickly and easily from transport to working position. With a simple and maintenance-friendly hand winch the inclination to 45 ° can be adjusted universally. The conveyor belt consists of many Metallmitnehmern and belt strips with a special rough surface, resulting in faster removal of Verladegutes possible. If any damage to the conveyor belt, the entire band, but only a single Fördergurtstreifen must not be replaced! Compact transport position by retractable and a swiveling telescopic conveyor

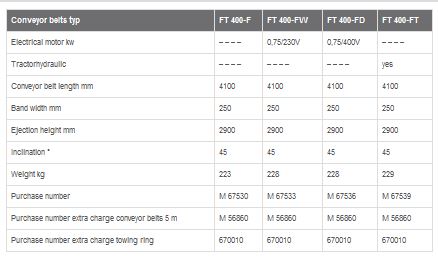

- Conveyor length 4100 mm or 5100 mm at 5 m conveyor belt
- Bandwidth 250 mm
- Ejection height 2900 mm or 3400 mm at 5 m conveyor belt
- Tilt up to 45 °
- Dimensional transport position (WxHxD) 3160x1500x1200 mm (height can be reduced by band swing!)
- Dimension working position (WxHxD) mm 4700x3000x1200
- A sturdy, welded construction
- Conveyor belt made of special rough surface with a plurality of textile cords and metal carriers for faster removal of offloading good
- Simple mechanical construction without expensive, high-maintenance hydraulic system
- Chassis with 400 mm pneumatic tires to 6 km / h
- Standard features include: hitch, ball hitch at extra cost
