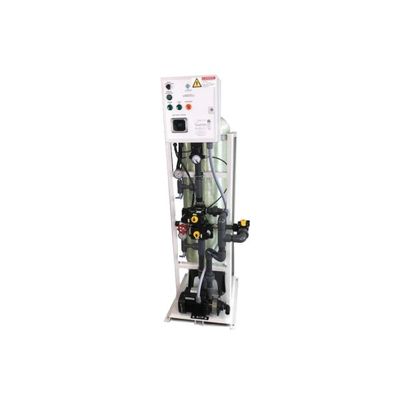

NuStream - Model CT 30 -Cooling Tower Filter

FromNuStream Filtration

SHARE

Compact design filters all the way down to

Most popular related searches

motorized ball valve

three-way ball valve

three-way valve

Non-Corrosive Design

PVC / Fiberglass / Powder Coated aluminum frame
Durable Grundfos pumps with optimal hydraulics. TEFC MLE motor exceeds the Premium Efficiency rating
UL NEMA 3R environmental rating

Ease of Installation / Operation

Solid-state programmable controller for simple reliable timed or on-demand operation
Rugged NEMA4 enclosure with motor-starter and safety disconnect
Three-way motorized ball valves. Single point electrical connection.
Fits through a standard door, no need for special equipment or cranes

Modular Design

Can be installed in single or multiple configurations to meet your specific needs.

Backwash Options

City water or tower water backwash source can be used. Backwash initiated by differential pressure, 24 hours of timed operation, or manual push button.

Sub-Micron Filtration

Exclusive NuStream design filters all the way down to

Service Flow Rate : 30 GPM
Backwash Flow Rate : 12 GPM
Tank Diameter : 14”
Outside Dimensions : 21.5” w x 25.32” d x 68.8” h
Working Pressure : 10 – 85 PSI
Inlet Connection : 1.25” FNPT
Outlet Connection : 1” MNPT
Drain Connection : 1” MNPT
Clean Water BW Connection : 1” FNPT
Pump Motor TEFC HorsePower : 1.5 HP, 115V, 20 AMP
Pump Motor Voltage / AMP : 115V / 20 AMP, Dedicated
Approximate Shipping Weight : 760 lbs (2 crates)
Approximate Operating Weight : 980 lbs
