Jiangbei - Model Class C/ R160 -Copper Can Multi-Jet Turbine Water Meter

• Size: 15mm, 20mm, 25mm
• Class B/Class C/R80/R100/R125/R160

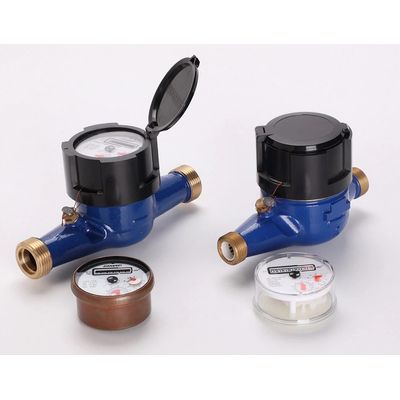

• Copper Can Register(IP68), or Plastic Can Register.
• Anti-Magnetism
• Demagnetism Test:>= 3200 L/H
• Pressure Loss:,= 0.063 Mpa.
• Working Pressure: PN10 or PN16.

• Body material is brass or plastic (reinforced polymerization), corrosion resistance.
• Magnetic drive and magnetic shield.
• Copper can register, IP68 protection from the environment, ensures clear reading, frost resistance and freezing resistance.
• Inlet strainer.
• Non return valve to avoid the reserve flow rate (optional);
• Pre-equipped pulse output.
• Complete solid lockable plastic shell for long lifetime to stop tampering.
• *The register can be 7 rollers and 2 pointers or 6 rollers and 2 pointers.

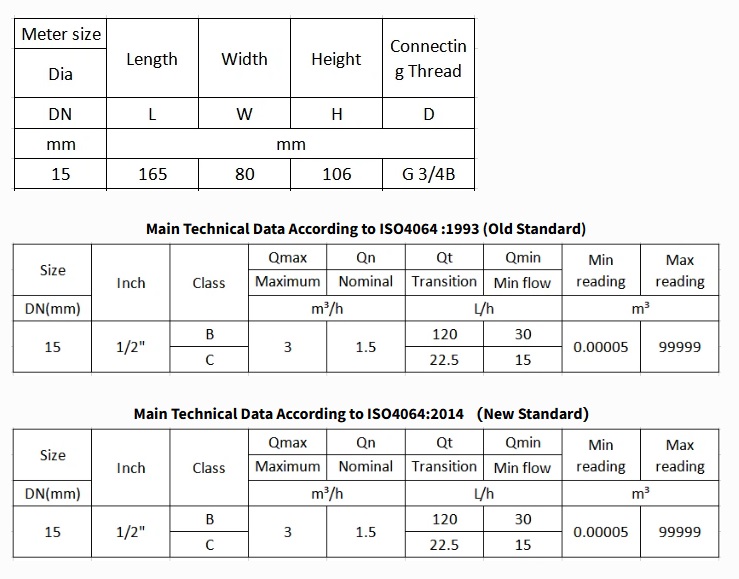

Maximum Permissible Error:

• In the lower zone from Qmin(Q1) inclusive up to but excluding Qt (Q2) is ±5%.
• In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±2%(cold water meter).
• In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±3%(hot water meter).

Installation requirements:

• The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.
• Pipeline must be flushed before installation.
• The meter should be constantly full of water during operation.
• We suggest the installation of the water meter as:
