BRUKER-SPALECK GmbH

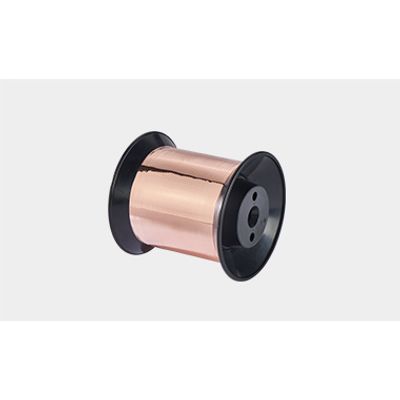

BRUKER-SPALECK - Copper Flat Wire
Base material copper: In accordance with EU-standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1). In accordance with US-standard: ASTM B 224 – 80. Available in different strength classes according to DIN EN 13599.
Most popular related searches
Optional coating on the base material
- Tin (Sn),
- Silver (Ag),
- Nickel (Ni),
- and others on request
Dimensions
- Thickness from 0.017 to 1.200 mm
- Width from 0.200 to 24.000 mm*
- > 6.000 mm width made of cut strip, re-rolled
Designs
- Additional application-optimized strengths to your specifications available
- Edge shape: Milled round, cut
Features:
- Geometrical and mechanical values are reviewed and documented according to your requirements
- Tightest tolerances in terms of thickness and width
- Resistance measurement to defined specifications
- Manufactured to your customized specifications
Applications
Flat wire for:
- fuse wire or fusible conductor for safety fuses
- welding wire
- connecting wire
- wire connector (PIN)
- shielding wire for high-frequency cable (HF cable)
